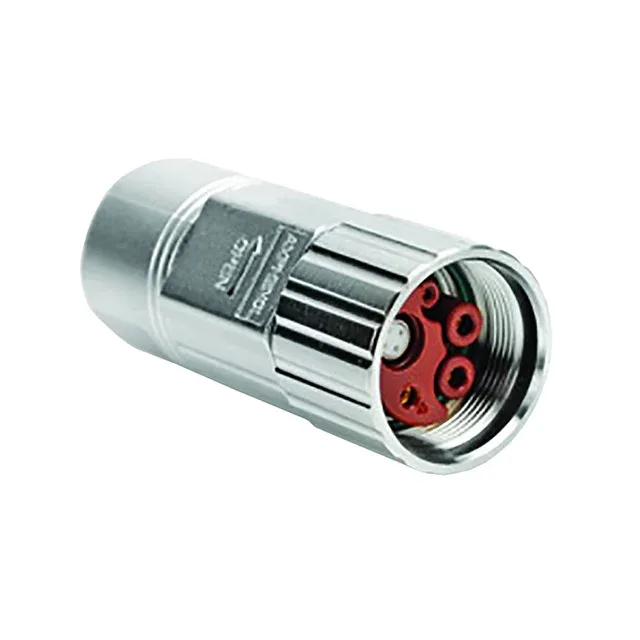

Amphenol MB3XSN8HS3
MPNMB3XSN8HS3
Active
CONN PLUG HSG FMALE 5POS INLINE
$48.13Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMotionGrade™ M23 Hybrid Series, Threaded
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | MotionGrade™ M23 Hybrid Series, Threaded |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Threaded |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -20°C ~ 130°C |
| Housing color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Thermoplastic |
| Note | Contacts Not Included |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Backshell, Coupling Nut |
| Shielding | Shielded |
| Orientation | Keyed |
| Contact size | 1.0mm (1), 2.0mm Power (3), 0.7mm Quadrax (1) |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 5 (1 + 2 Power + 1 Quadrax + PE) |
| Shell size - insert | M23-5 |
