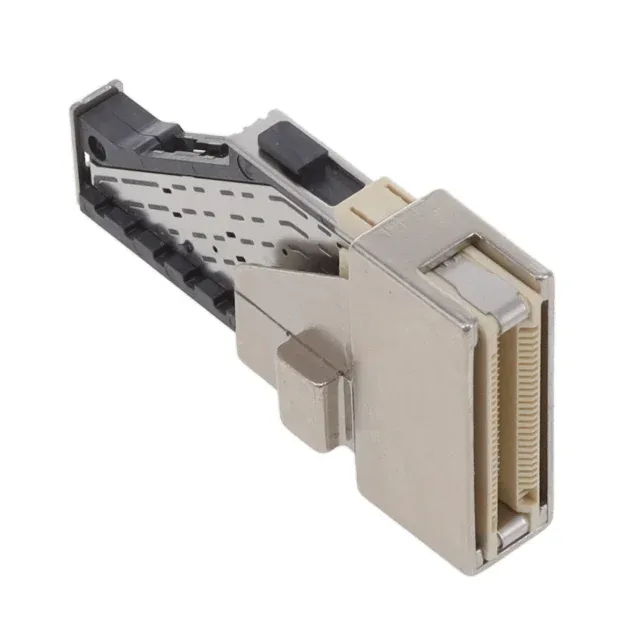

Amphenol ME3005602311011
MPNME3005602311011
Active
CONN EDGE DUAL FMALE 56POS 0.024
$18.82Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMini Cool Edge 0.60mm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini Cool Edge 0.60mm |
| Card type | Non Specified - Dual Edge |
| Type | Cantilever |
| Mounting | Through Hole, Right Angle |
| Operating temperature | -55°C ~ 105°C |
| Color | Natural |
| Contact material | Copper Alloy |
| Material - insulation | Thermoplastic |
| Pitch | 0.024\" (0.60mm) |
| Gender | Female |
| Package | Tube |
| Read out | Dual |
All specifications
| Parameter | Value |
|---|---|
| Termination | Press-Fit |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 56 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Bay, row) | 28 |
