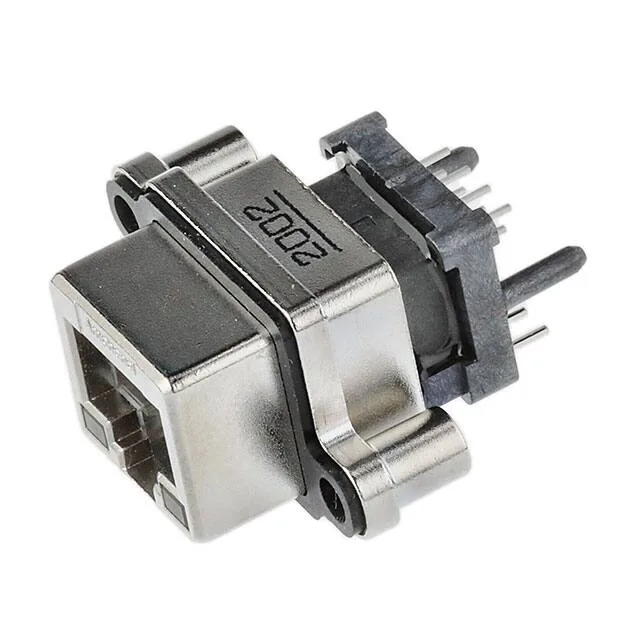

Amphenol MRJ54810F
MPNMRJ54810F
Active
CONN MOD JACK 8P8C VERT UNSHLD
$12.17Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMRJ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MRJ |
| Mounting | Panel Mount, Flange (2 Hole); Through Hole |
| Connector type | Jack |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 105°C |
| LED color | Green - Yellow |
| Contact material | Phosphor Bronze |
| Housing material | Polycarbonate (PC) |
| Package | Box |
| Features | Board Guide |
| Shielding | Unshielded |
| Orientation | Vertical |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
