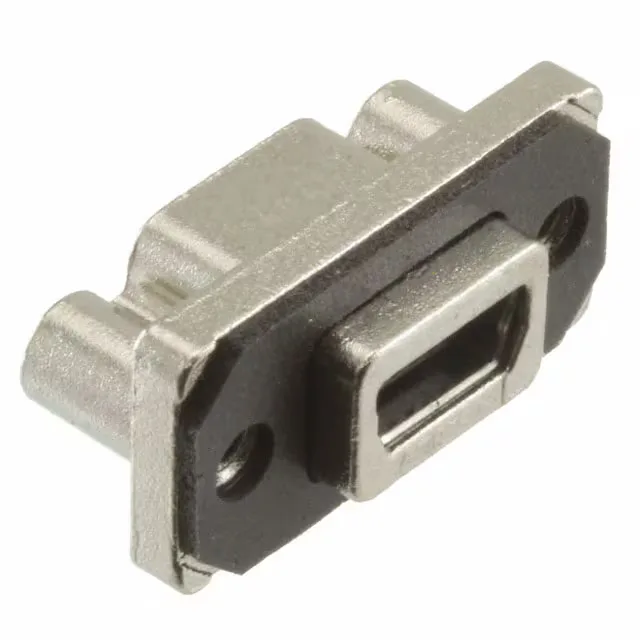

MUSBB15104 — Amphenol product photo
Amphenol

MUSBB15104 Amphenol ICC USB mini-B Receptacle IP67

MPNMUSBB15104
Active

Amphenol ICC MUSB series USB - mini B receptacle, order code MUSBB15104, 5 contacts, 1 A, USB 2.0, gold-plated contacts, shielded, panel mount through-hole right-angle, solder termination.

$12.9100Ref. price · indicative, final on quote
MUSBB15104 datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBB15104 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB - mini B
Current rating1A
Positions5
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-mount USB mini-B with IP67 seal

The MUSBB15104 is the 5-contact USB mini-B receptacle in Amphenol ICC's MUSB series, specified for USB 2.0 and rated 1 A. The IP67-rated shell and flange mounting seal the interface against dust and water ingress, while the gold-plated contacts support 5000 mating cycles.

Sealing and temperature range

The IP67 rating applies when the receptacle is mated with a matching IP67-rated plug, making the assembly suitable for environments where dust and temporary water immersion occur.

Frequently asked questions

Is the MUSBB15104 RoHS and REACH compliant?

Amphenol ICC (Commercial Products) provides RoHS and REACH compliance documentation for the MUSB series. Request the compliance certificate with the order.

What is the gender of the MUSBB15104?

The MUSBB15104 is a receptacle (female) USB mini-B connector.

What series does the MUSBB15104 belong to?

The MUSBB15104 is part of the Amphenol ICC MUSB series.
