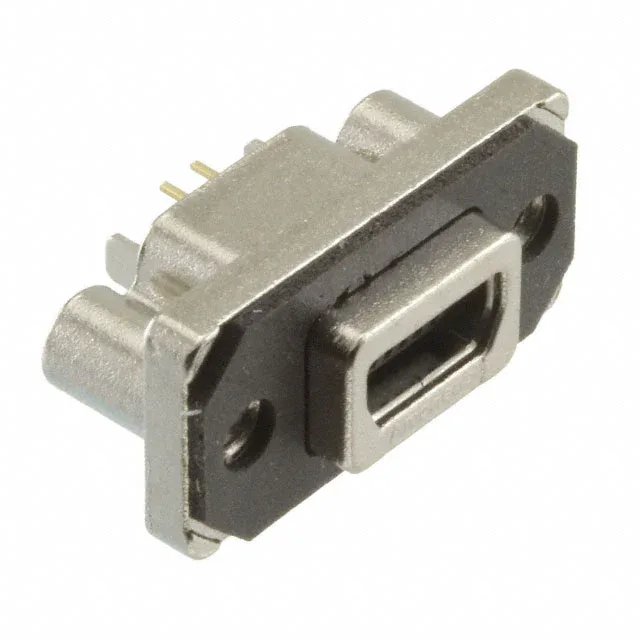

MUSBE55100 — Amphenol product photo
Amphenol

MUSBE55100 Amphenol ICC USB mini AB Receptacle, IP67

MPNMUSBE55100
Active

Amphenol ICC MUSB series USB mini AB receptacle, order code MUSBE55100, 5 contacts, USB 2.0, IP67, shielded, gold-plated contacts, panel mount through-hole, solder termination, 1 A.

$11.3600Ref. price · indicative, final on quote
MUSBE55100 datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBE55100 Technical Specifications
ParameterValue
SeriesMUSB
Mounting typePanel Mount, Through Hole
Connector typeUSB - mini AB
Current rating1A
Positions5
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-mount USB with IP67 sealing

The MUSBE55100 is a USB mini AB receptacle in Amphenol ICC's MUSB series, offering 5 contacts and USB 2.0 compliance with full IP67 sealing when mated. Rated 1 A per contact, the gold-plated contacts support 5000 mating cycles, and the shielded copper alloy shell with UL94 V-0 housing suits industrial and outdoor equipment enclosures.

Mounting and sealing for washdown environments

Panel mount with a horizontal flange, through-hole solder termination — the IP67 rating covers dust ingress and temporary water immersion, making the MUSBE55100 usable in washdown or outdoor panel applications. Operating temperature range -40°C to 105°C matches the thermal profile of unheated enclosures and engine-adjacent compartments.

Frequently asked questions

What is MUSBE55100's listed gender and series?

The MUSBE55100 is a Receptacle in the MUSB series from Amphenol ICC (Commercial Products).
