Amphenol MUSBR-E151-30 — USB, Type-C & HDMI Connectors

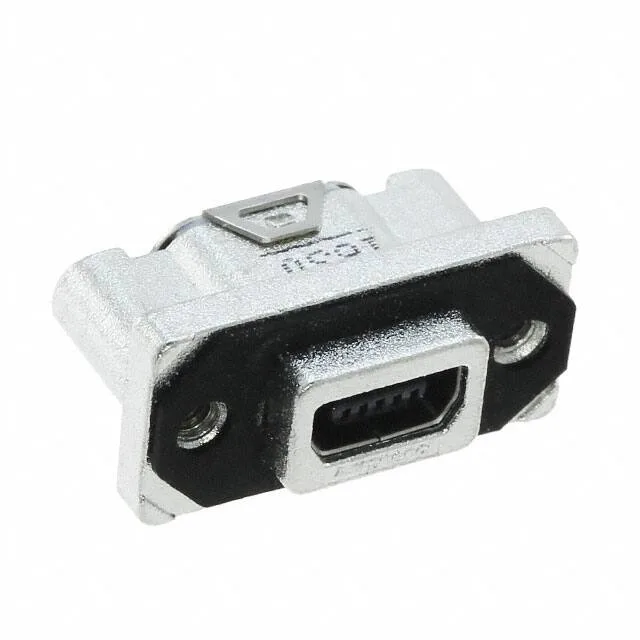

MUSBR-E151-30 Amphenol USB mini AB Receptacle, IP67

MPNMUSBR-E151-30
Active

Amphenol ICC MUSBR series USB mini AB receptacle, order code MUSBR-E151-30, 5 contacts, 1 A, USB 2.0, shielded, gold-plated contacts, panel mount through-hole right-angle, solder termination.

$12.6600Ref. price · indicative, final on quote
Amphenol MUSBR-E151-30 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

MUSBR-E151-30 key specifications
ParameterValue
SeriesMUSBR
MountingPanel Mount, Through Hole, Right Angle
Connector typeUSB - mini AB
Current rating1A
Positions5
IP ratingIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

MUSBR-E151-30 additional specifications
ParameterValue
PackageTray
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Ruggedized USB mini AB receptacle — IP67 sealed

The MUSBR-E151-30 is the 5-contact USB mini AB receptacle in Amphenol ICC's MUSBR series, specified for USB 2.0 data rates and rated 1 A per contact. The housing carries an IP67 rating for dust and temporary immersion, and the steel/stainless shell provides integral shielding.

Mating cycle endurance and environmental range

Gold-plated contacts support 5000 mating cycles — the plating grade sustains repeated connect-disconnect in field-service or test-equipment duty without fretting corrosion.

Frequently asked questions

What is the gender and connector type of the MUSBR-E151-30?

It is a Receptacle, USB - mini AB, with 5 contacts.

Does the MUSBR-E151-30 carry an IP rating?

Yes, it is rated IP67 — dust-tight and protected against temporary immersion in water.
