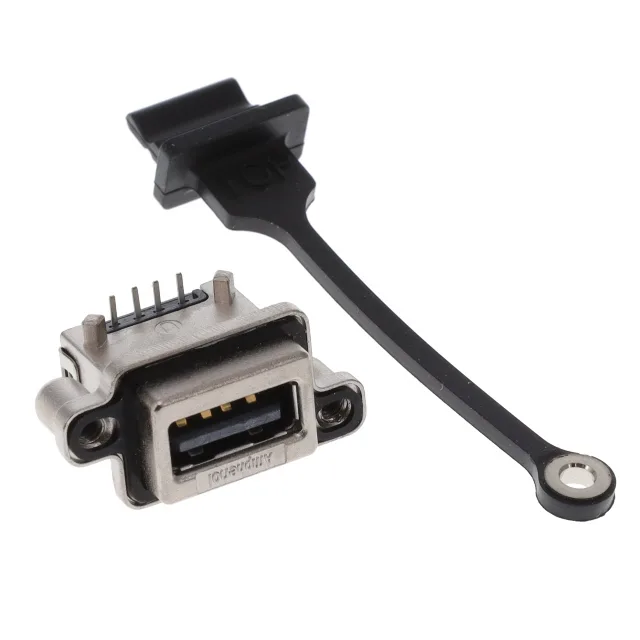

MUSBRA11145 — Amphenol product photo
Amphenol

MUSBRA11145 Amphenol ICC USB-A Receptacle, IP67, Shielded

MPNMUSBRA11145
Active

Amphenol ICC MUSBR USB-A receptacle, order code MUSBRA11145, 4 contacts, 1.5 A, IP67, shielded, gold-plated contacts, panel mount through-hole right-angle, solder termination.

$10.1800Ref. price · indicative, final on quote
MUSBRA11145 datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

MUSBRA11145 Technical Specifications
ParameterValue
SeriesMUSBR
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Current rating1.5A
Positions4
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-40°C~105°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBox
FeaturesBoard Guide, Cover
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-sealed USB-A with flange mount

The MUSBRA11145 is the 4-contact USB-A receptacle in Amphenol ICC's MUSBR series, rated IP67 when mated and terminated. The shielded steel shell and gold-plated contacts support 1.5 A per contact with 1500 mating cycles, and the flange with horizontal orientation suits panel-mount installations where dust and water ingress must be excluded.

Sealing and shielding construction

The IP67 rating covers dust-tight and temporary immersion protection when the receptacle is mated with the corresponding plug — the board guide and cover aid alignment during assembly. The steel and stainless shell provides EMI shielding, and the UL94 V-0 rated housing meets flammability requirements for equipment inside an enclosure.

Frequently asked questions

Who supplies MUSBRA11145 and how is it quoted for volume purchases?

Amphenol ICC (Commercial Products) is the manufacturer. The part is quoted to order against the BOM quantity; availability is confirmed at RFQ.

What is MUSBRA11145's listed gender and series?

The MUSBRA11145 is a receptacle in the MUSBR series.
