Amphenol NZ02005B0000G
MPNNZ02005B0000G
Active

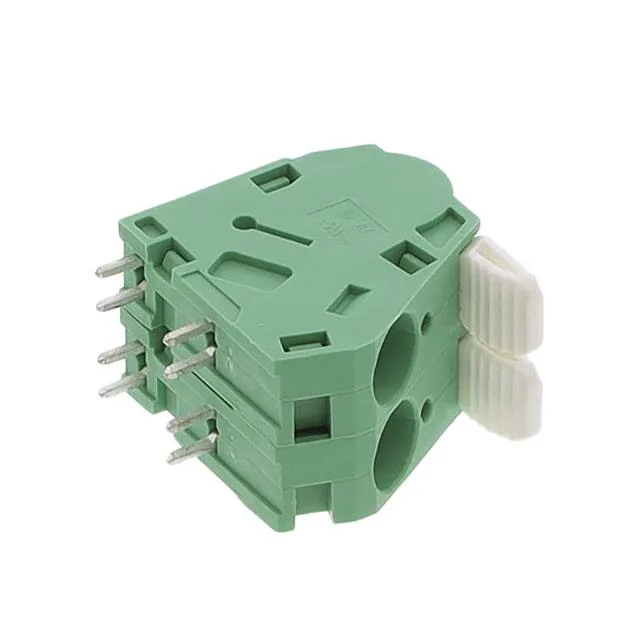

NZ 10.0 2P GREEN WITHOUT JUMPER
$2.54Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesNZ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NZ |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 55 A |
| Wire gauge | 6-16 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Housing material | Thermoplastic |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Copper - Tin Plated |
| Pitch | 0.394\" (10.00mm) |
| Package | Bulk |
| Features | Lever Actuated |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
