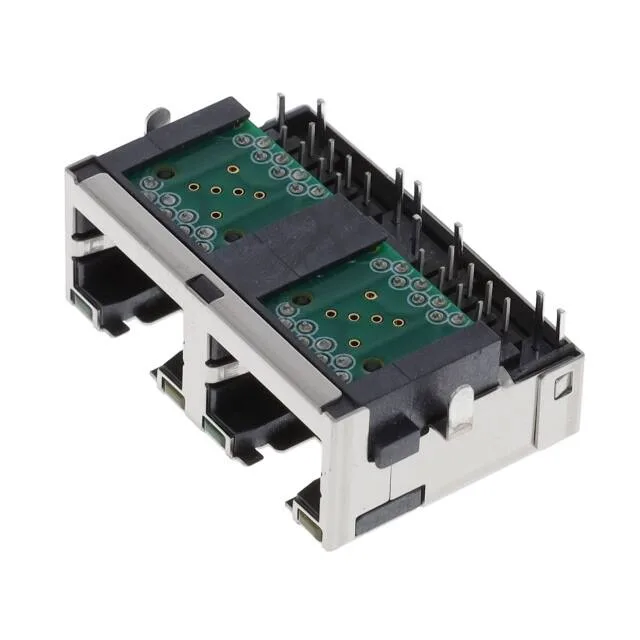

Amphenol RJE722886412
MPNRJE722886412
Active
8P8C, RA, RECESSED PROFILE, TWO
$7.54Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesRJE72
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RJE72 |
| Mounting | Board Edge; Panel Mount; Through Hole |
| Connector type | Jack |
| Operating temperature | -55°C ~ 85°C |
| LED color | Yellow - Green |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Package | Tray |
| Ratings | Cat5e |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 2 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
