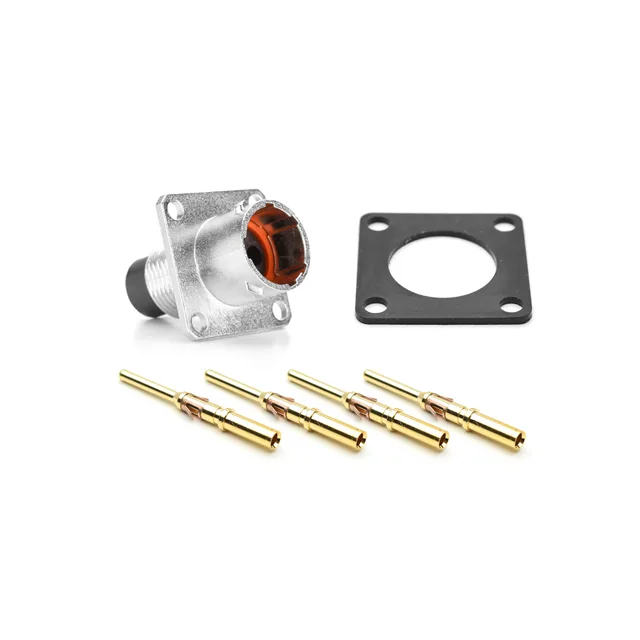

Amphenol RT00104PNH03
MPNRT00104PNH03
Active
WALL MTG RECPT, PIN WITH SILICON
$11.41Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Seriesecomate® RM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | ecomate® RM |
| Mounting | Panel Mount |
| Connector type | Receptacle Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Silver |
| Shell material | Zinc Alloy |
| Insert material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Note | Contacts Not Included |
| Package | Bag |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Contact size | 16 |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 4 |
| Shell size - insert | 10-4 |
