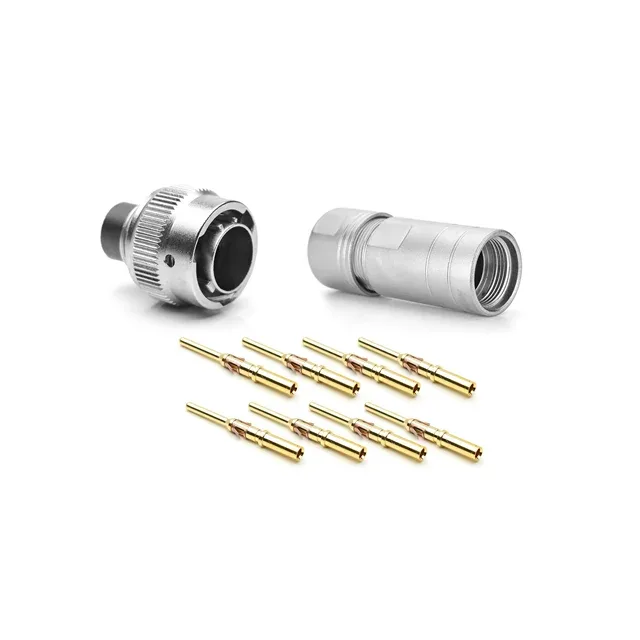

CONN PLUG MALE 8POS GOLD CRIMP
$36.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | ecomate® RSSM |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 250VAC |
| Current rating | 13A |
| Ingress protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.256\" ~ 0.394\" (6.50mm ~ 10.00mm) |
| Operating temperature | -40°C ~ 105°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA66), Nylon 6/6 |
| Contact material | Brass |
| Primary material | Metal |
| Backshell material, plating | Zinc Die Cast, Nickel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Termination | Crimp |
| Applications | Aerospace, Automation, Industrial, Telecom, Transportation |
| Shell finish | Nickel |
| Positions | 8 |
| Shell size - insert | 12-8 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
Sourcing this connector
Amphenol RT06128PNH03SS-K is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Amphenol and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
