Amphenol RT0W61626PNH-K
MPNRT0W61626PNH-K
Active

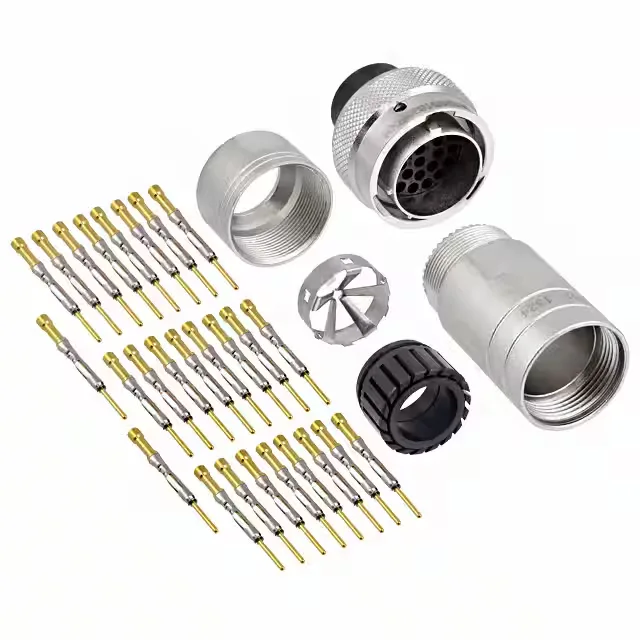

CONN PLUG MALE 26POS GOLD CRIMP
$58.96Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Seriesecomate® RM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ecomate® RM |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Bayonet Lock |
| Voltage rating | 150VAC/DC |
| Current rating | 7.5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 105°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Primary material | Metal |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Orientation | N (Normal) |
| Termination | Crimp |
| Shell finish | Nickel |
| Positions | 26 |
| Shell size - insert | 16-26 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
