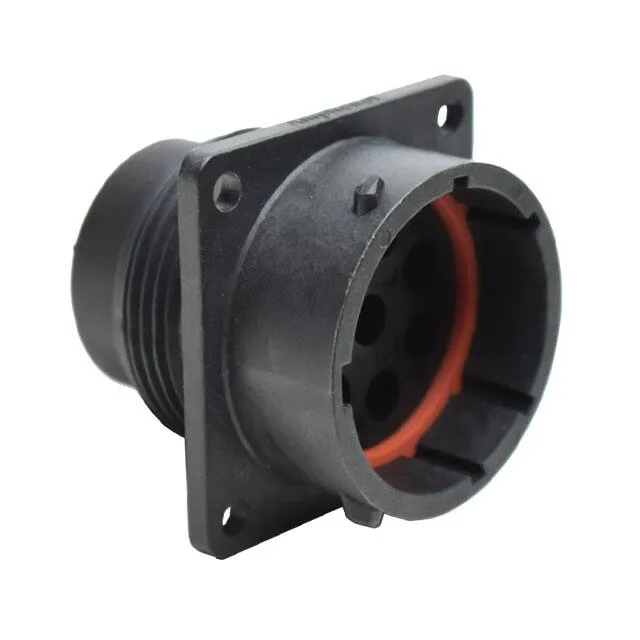

Amphenol RTS018N8P03
MPNRTS018N8P03
Active
CONN RCPT HSNG MALE 8POS PNL MNT
$7.85Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Seriesecomate® Aquarius™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | ecomate® Aquarius™ |
| Mounting | Panel Mount |
| Connector type | Receptacle Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 125°C |
| Housing color | Black |
| Shell material | Thermoplastic |
| Insert material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Note | Contacts Not Included |
| Package | Bulk |
| Includes | 2 pcs - 1 Connector, 1 Gasket |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Contact size | 2.5mm |
| Contact shape | Circular |
| Positions | 8 |
| Shell size - insert | 18-8 |
