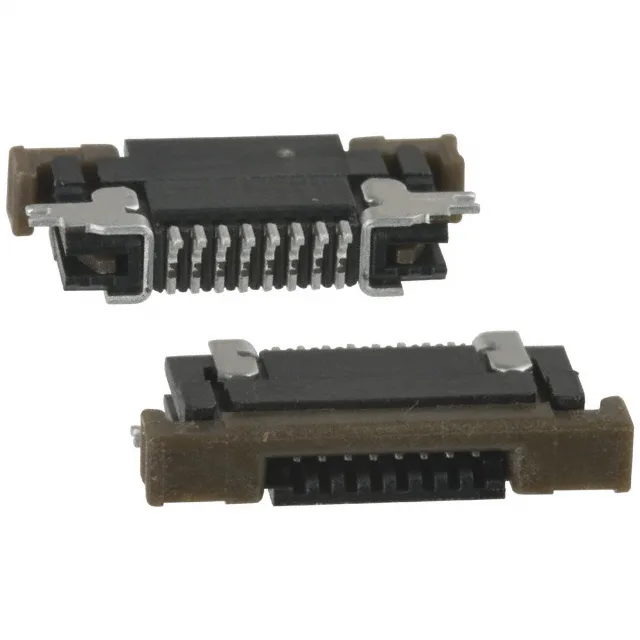

SFV8R-1STE1LF - Amphenol ICC (FCI)
MPNSFV8R-1STE1LF
Obsolete
$0.4500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SFV-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height above board | 0.071\" (1.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm, 0.33mm |
| Positions | 8 |
