ZIF actuation and contact interface
The SFW22R-1STE1LF is the 22-position member of Amphenol ICC (FCI)'s SFW-R FFC/FPC connector series, using a zero insertion force (ZIF) actuator for the bottom-contact interface.

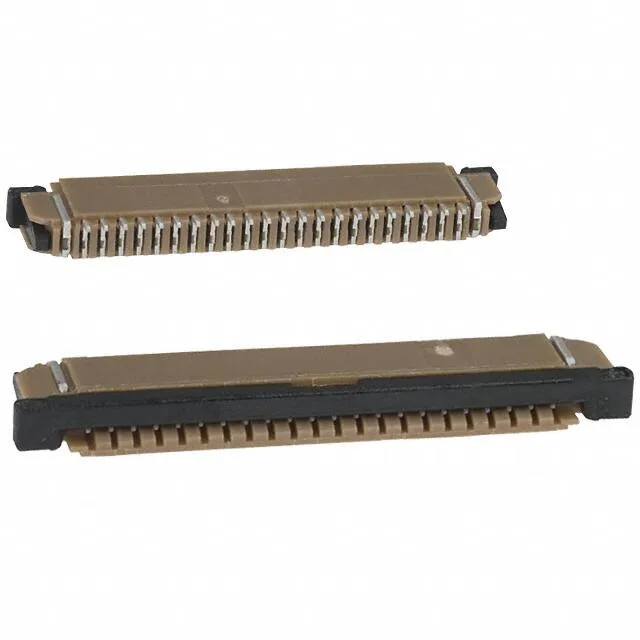

SFW22R-1STE1LF Amphenol ICC (FCI) FFC/FPC Connector, 22 Pos
MPNSFW22R-1STE1LF
Active
Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW22R-1STE1LF, 22 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated bottom contacts, zero insertion force (ZIF), surface-mount right-angle, kinked pin termination.
$1.0900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSFW-R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight or Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Kinked Pin |
| Mating cycles | 20 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 22 |
Product details
Frequently asked questions
What FFC thickness does the SFW22R-1STE1LF accept?
The contacts are on the bottom side.
