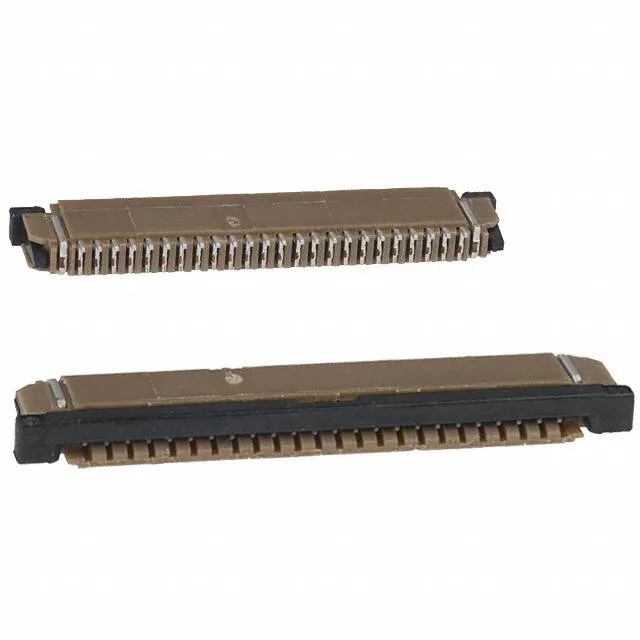

Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW24R-1STE1LF, 24 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated bottom contacts, zero insertion force (ZIF), surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | SFW-R |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~105°C |
| Housing color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Parameter | Value |
|---|---|
| Height above board | 0.106\" (2.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 24 |
The SFW24R-1STE1LF: The zero insertion force (ZIF) actuator eliminates contact wear during insertion — the 20 mating cycles rating reflects the wipe on the actuator cam, not the contacts. On site, that means re-terminating a cable in the same housing doesn't degrade the connection.
The contacts are on the bottom side, so the cable inserts with the pads facing down.
