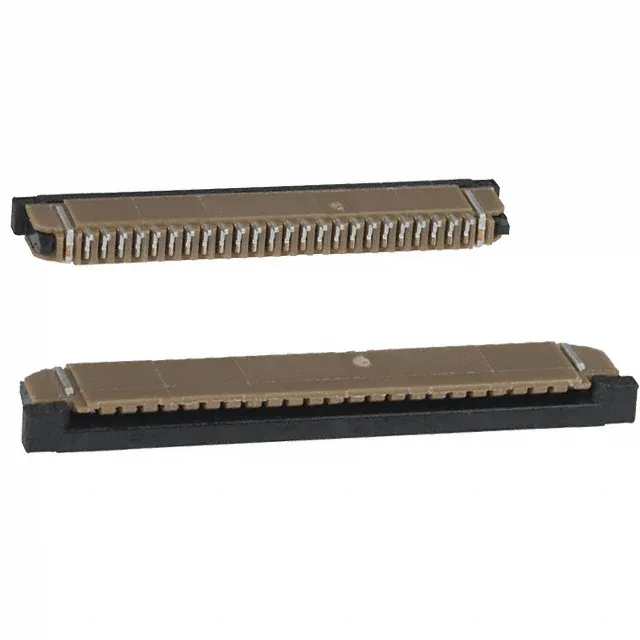

The SFW24R-2STE1LF: The 24-position count matches a 24-conductor FPC; confirm the cable end type is straight or tapered per the spec. The 0.106" (2.70 mm) height above board gives a low profile for tight enclosures. ZIF actuation means the FPC slides in without force — the actuator locks the cable in place. This avoids pad scoring on repeated insertions, though the 20-cycle rating means it's not built for daily reconnection; it's a set-and-forget interconnect for production or infrequent service.
Tin contact finish is standard for cost-sensitive, low-cycle applications.
Thermal and Mechanical Limits
The kinked pin termination provides solder retention during reflow — the kink acts as a standoff, keeping the contact aligned through the solder paste reflow.
