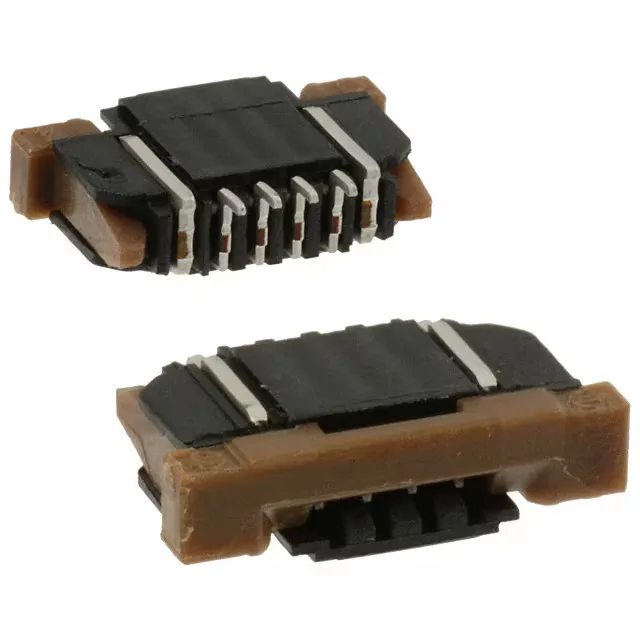

SFW4R-3STE1LF — Amphenol product photo
Amphenol

SFW4R-3STE1LF Amphenol ICC FCI FFC/FPC Connector 4 Pos

MPNSFW4R-3STE1LF
Active

Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW4R-3STE1LF, 4 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated bottom contacts, surface-mount right-angle, kinked pin termination, ZIF actuation.

$0.7300Ref. price · indicative, final on quote
SFW4R-3STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW4R-3STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight or Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
FFC, FCB thickness0.30mm
Positions4

Product details

ZIF FFC/FPC connector, 4 positions, bottom contact

The SFW4R-3STE1LF is the 4-position member of Amphenol ICC (FCI)'s SFW-R series of zero-insertion-force FFC/FPC connectors. It accepts 0.30 mm thick flat flex cable on the bottom side, mates at 1.00 mm pitch, and is rated 1 A per contact at 100 V with tin-plated phosphor bronze contacts.

Pitch and cable fit

The 1.00 mm pitch and bottom-contact configuration suit straight or tapered FFC/FPC ends. The ZIF actuator secures the cable without insertion force — the contact beam wipes the pad on actuation.
