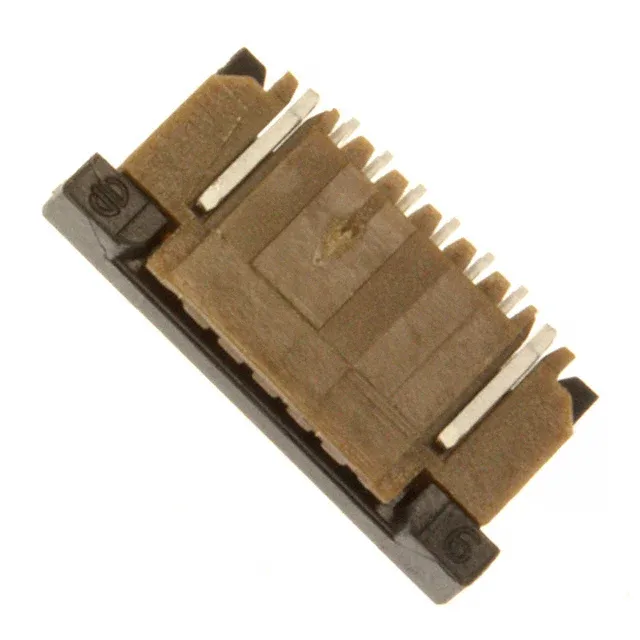

SFW6R-2STE1LF — Amphenol product photo
Amphenol

SFW6R-2STE1LF Amphenol ICC FFC FPC 6Pos 1.00mm ZIF

MPNSFW6R-2STE1LF
Active

Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW6R-2STE1LF, 6 positions, 1.00 mm pitch, top contact, ZIF slide lock, 1 A, 100 V, surface-mount right-angle, solder termination.

$1.1300Ref. price · indicative, final on quote
SFW6R-2STE1LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW6R-2STE1LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions6

Product details

Right-angle ZIF, 1.00 mm pitch

The SFW6R-2STE1LF is the 6-position member of Amphenol ICC's SFW-R FFC/FPC connector line, a right-angle surface-mount ZIF design with a slide lock actuator.

ZIF actuation and board retention

The slide lock actuator provides zero insertion force — the FFC/FPC is inserted with the lock open, then slid closed to clamp the contacts. Solder retention features on the housing hold the connector in place during reflow. The connector accepts straight or tapered cable ends and stands 2.70 mm above the board.
