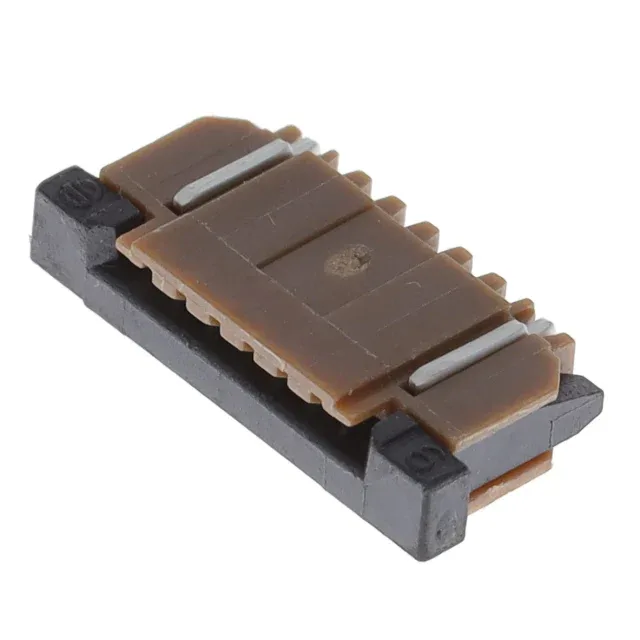

SFW6R-2STE9LF — Amphenol product photo
Amphenol

SFW6R-2STE9LF Amphenol ICC FFC FPC 6Pos 1.00mm ZIF

MPNSFW6R-2STE9LF
Active

Amphenol ICC (FCI) SFW-R FFC/FPC connector, order code SFW6R-2STE9LF, 6 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated contacts, top-entry, surface-mount right-angle, ZIF actuation, solder termination.

$0.4240Ref. price · indicative, final on quote
SFW6R-2STE9LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SFW6R-2STE9LF Technical Specifications
ParameterValue
SeriesSFW-R
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating100V
Current rating1A
Operating temperature-55°C~105°C
Housing colorBrown
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.106\" (2.70mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions6

Product details

ZIF FFC/FPC connector, 6 positions, 1.00 mm pitch

The SFW6R-2STE9LF is the 6-circuit top-entry member of Amphenol ICC's SFW-R ZIF FFC/FPC connector line.

Position count and contact side across the SFW-R series

The SFW6R-2STE9LF's 6 positions and top-contact entry sit alongside the SFW6R-1STE9LF (6 positions, bottom-contact) and the SFW6R-2STAE1LF (6 positions, top-contact, gold-plated contacts) — the 1.00 mm pitch, ZIF slide-lock actuator, and 2.70 mm above-board height are shared across the series.

Frequently asked questions

What is the closest functional peer to the SFW6R-2STE9LF?

The SFW6R-2STE1LF shares the same 6 positions, 1.00 mm pitch, tin contacts, and top-entry orientation — the only difference is the housing color (black vs brown). Both are active and share the same footprint.
