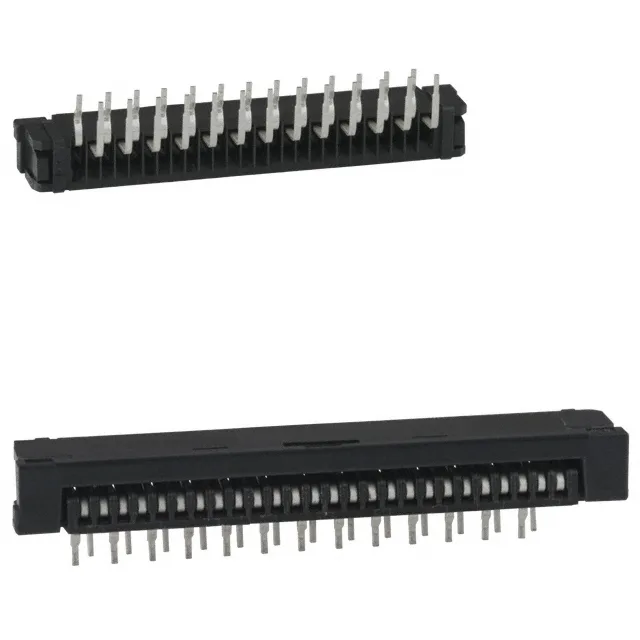

Amphenol ICC (FCI) SLW-R FFC connector, order code SLW26R-1C7LF, 26 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated bottom contacts, through-hole right-angle, kinked pin termination, ZIF actuation.
SLW26R-1C7LF Amphenol ICC FCI FFC Connector 26 Pos 1.00mm
MPNSLW26R-1C7LF
Active
Amphenol ICC (FCI) SLW-R FFC connector, order code SLW26R-1C7LF, 26 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated bottom contacts, through-hole right-angle, kinked pin termination, ZIF actuation.
$0.8200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSLW-R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SLW-R |
| Mounting | Through Hole, Right Angle |
| Cable end type | Straight or Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.157\" (4.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tray |
| Features | Zero Insertion Force (ZIF) |
| Termination | Kinked Pin |
| Mating cycles | 20 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 26 |
Product details
Frequently asked questions
What is the closest functional second-source to the SLW26R-1C7LF?
The SLW28R-1C7LF is a same-series sibling with 28 positions; the pitch, ZIF actuation, and board footprint are identical, so the choice depends on the required circuit count.
