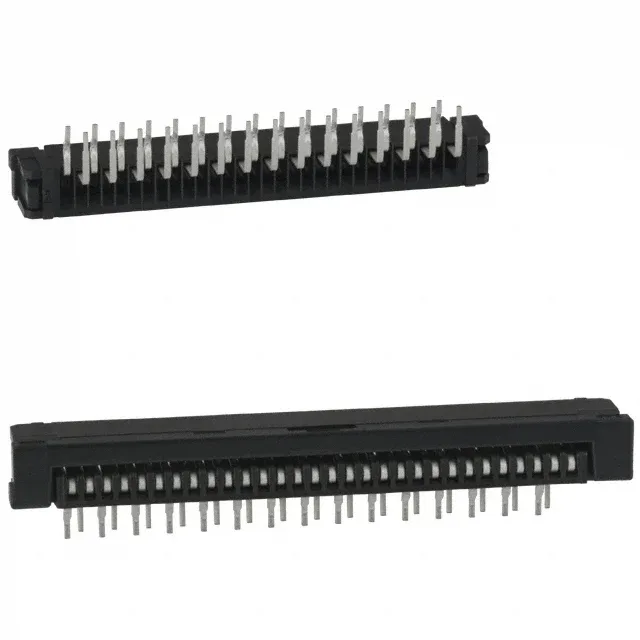

Amphenol ICC (FCI) SLW-R FFC, FPC connector, order code SLW30R-1C7LF, 30 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated contacts, bottom contact, through-hole right-angle, kinked pin termination, ZIF actuation.
| Parameter | Value |
|---|---|
| Series | SLW-R |
| Mounting | Through Hole, Right Angle |
| Cable end type | Straight or Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -55°C~85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Height above board | 0.157\" (4.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tray |
| Features | Zero Insertion Force (ZIF) |
| Termination | Kinked Pin |
| Mating cycles | 20 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 30 |
The SLW30R-1C7LF is the 30-circuit member of Amphenol ICC (FCI)'s SLW-R FFC/FPC connector line, a 1.00 mm pitch ZIF socket with bottom-side contacts.
A 16-position sibling, SLW16R-1C7LF, is also available for lower-density designs.
The SLW28R-1C7LF is a same-series sibling with 28 positions; the pitch, ZIF actuation, bottom-contact orientation, and tin plating are identical.
