Amphenol SLW5R-5C7LF — FFC / FPC & Ribbon Connectors

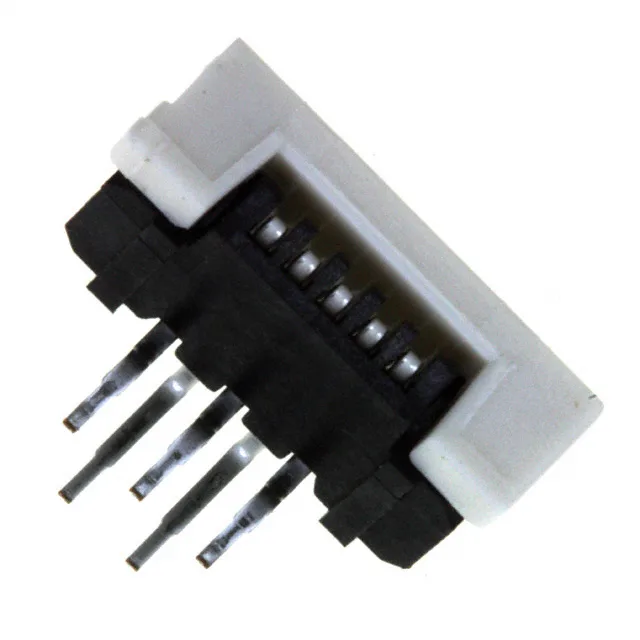

SLW5R-5C7LF Amphenol ICC (FCI) FFC/FPC Connector, 5 Pos, 1mm

MPNSLW5R-5C7LF
Obsolete

Amphenol ICC (FCI) SLW-R FFC/FPC connector, order code SLW5R-5C7LF, 5 positions, 1.00 mm pitch, 1 A, 100 V, tin-plated contacts, through-hole right-angle, ZIF actuation, kinked pin termination.

$0.3700Ref. price · indicative, final on quote
Amphenol SLW5R-5C7LF datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

SLW5R-5C7LF key specifications
ParameterValue
SeriesSLW-R
MountingThrough Hole, Right Angle
Cable end typeTapered
Flat flex typeCIC
Connector (Contact type)Contacts, Bottom
Voltage rating100V
Current rating1A
Operating temperature-55°C~85°C
Housing colorBlack
Actuator colorWhite
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled

All specifications

SLW5R-5C7LF additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.157\" (4.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTray
FeaturesZero Insertion Force (ZIF)
TerminationKinked Pin
Mating cycles20
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions5

Product details

5-circuit ZIF for 0.30 mm FFC

The SLW5R-5C7LF is the 5-circuit member of Amphenol ICC (FCI)'s SLW-R FFC/FPC connector series, accepting 0.30 mm thick flat flex cable with a tapered end. Rated 1 A per contact at 100 V, the connector uses a slide-lock ZIF actuator and tin-plated phosphor bronze contacts mated from the bottom side of the FFC.

Obsolete — sourcing from remaining stock

Amphenol ICC (FCI) has marked the SLW5R-5C7LF as Obsolete; no official successor is listed. Available through independent surplus channels — quantities are lot-specific and confirmed at RFQ.

Frequently asked questions

What is the pitch and position count of the SLW5R-5C7LF?

The SLW5R-5C7LF has 5 positions on a 0.039" (1.00 mm) pitch, accepting 0.30 mm thick FFC with a tapered end.
