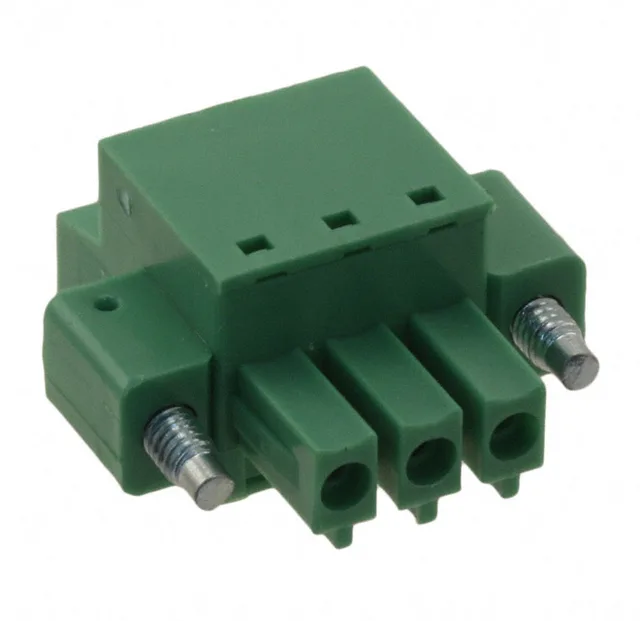

Amphenol VM0335520000G
MPNVM0335520000G
Active
$0.7199Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 03-381 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.5-1.5mm² |
| Operating temperature | -40°C~115°C |
| Color | Green |
| Contact material | Copper Alloy |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Thermoplastic Resin |
| Insulation height | 0.854\" (21.69mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Mating Flange |
| Screw size | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
