YK1140330100G - Amphenol
MPNYK1140330100G
Active

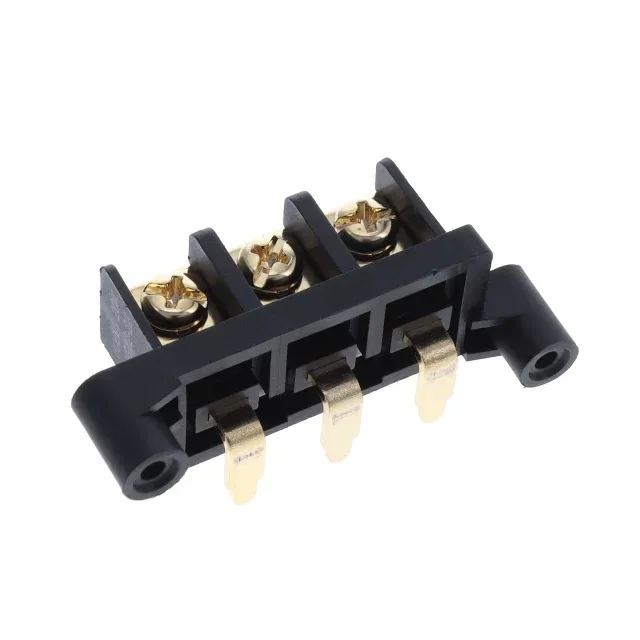

BARRIER TERMINAL BLOCKS 3POS, PI
$3.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesYK114
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | YK114 |
| Barrier type | 3 Wall (Tri) |
| Mounting | Chassis, Panel, Right Angle |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 20A |
| Wire gauge | 12-22 AWG |
| Terminal screw finish | Gold |
| Number of wire entries | 3 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 115°C |
| Material - insulation | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.433\" (11.00mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | Solder Tab |
| Number of circuits | 3 |
