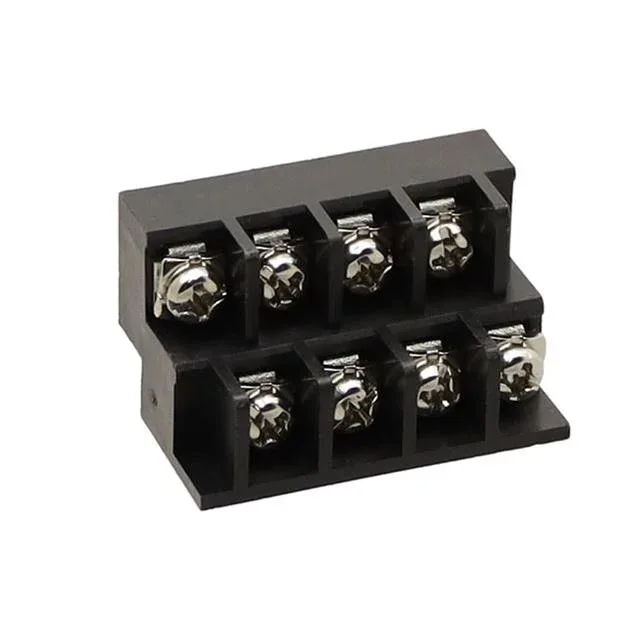

YK66C0803000G - Amphenol
MPNYK66C0803000G
Active
BARRIER TERMINAL BLOCKS 2X4, 8PO
$1.84Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesYK66C
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | YK66C |
| Barrier type | 3 Wall (Tri) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 10A |
| Wire gauge | 16-26 AWG |
| Terminal screw finish | Nickel |
| Number of wire entries | 8 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 130°C |
| Material - insulation | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Rows | 2 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 4 |
