Assmann WSW Components — Pin Headers

Assmann WSW Components Pin Headers — 26 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

Base Product Number
AWH 10 · AWH 14 · AWH 16 · AWH 26
Number of Positions
10 · 14 · 16 · 26
Insulation Height
0.669" (17.00mm) · 0.327" (8.30mm) · 0.352" (8.95mm) · 0.354" (9.00mm)
Contact Length - Post
0.130" (3.30mm) · 0.150" (3.81mm) · 0.124" (3.15mm) · -
Contact Length - Mating
- · 0.224" (5.70mm) · 0.232" (5.90mm) · 0.157" (4.00mm)
Fastening Type

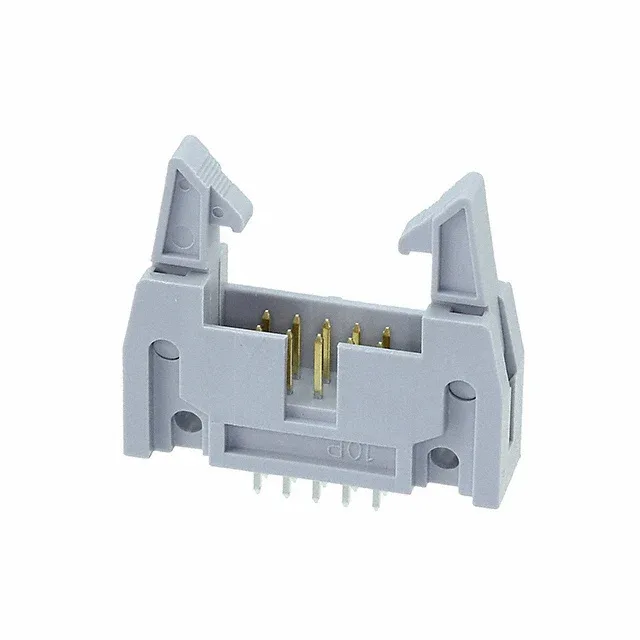

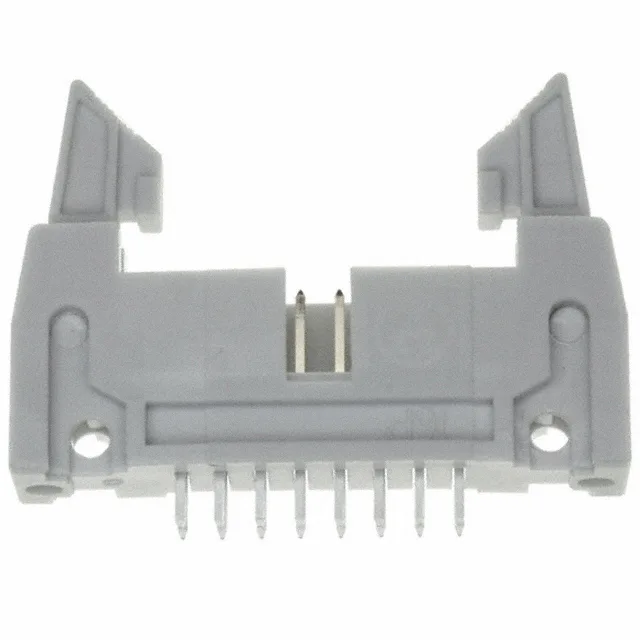

Latch Lock/Eject Hooks, Long · Latch Lock/Eject Hooks, Short · Push-Pull · Latch Holder
Mounting Type

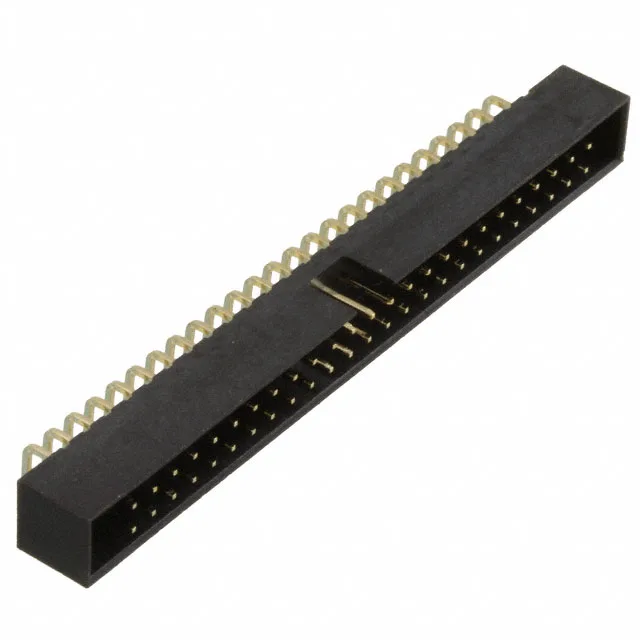

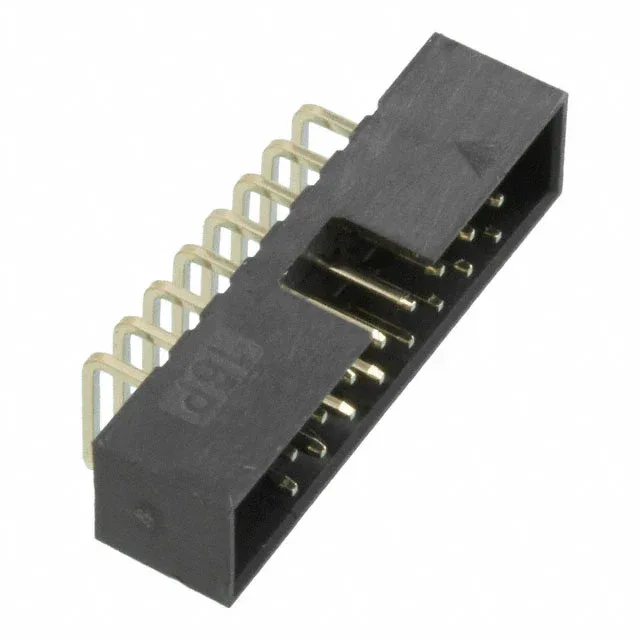

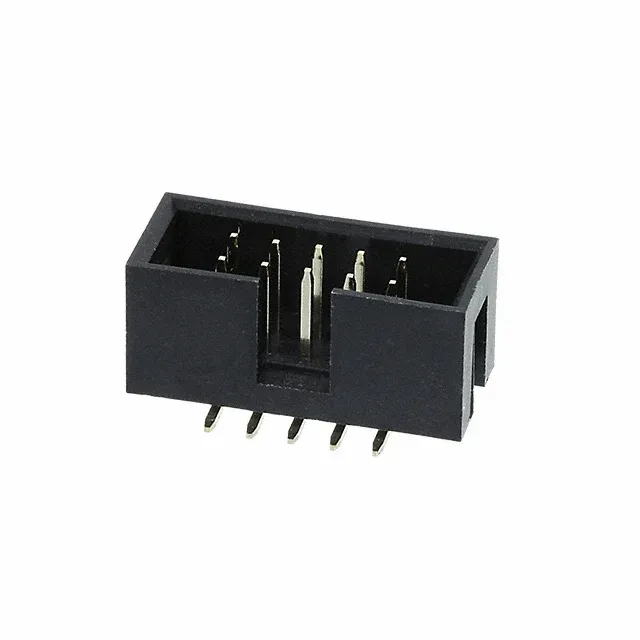

Through Hole · Through Hole, Right Angle · Surface Mount
Contact Finish - Post
Tin · -
