Bulgin BZH11/Z0000/11
MPNBZH11/Z0000/11
Active

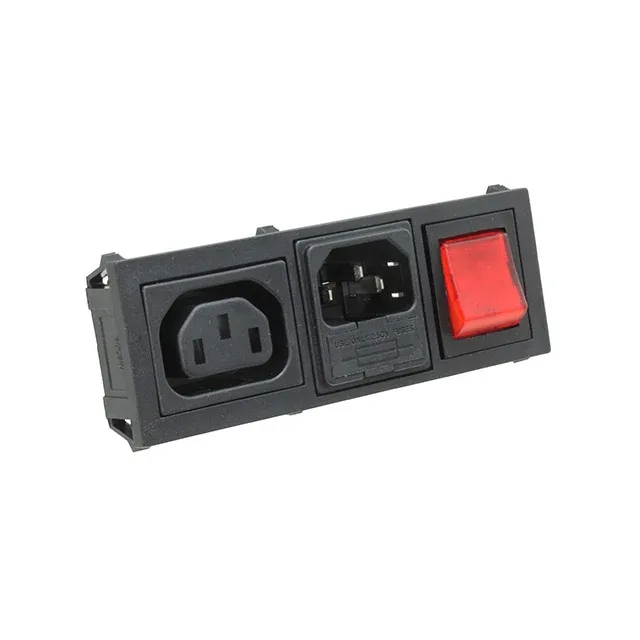

PWR ENT IN/OUT IEC320-2-2F PNL
$19.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPolysnap® BZH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Polysnap® BZH |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-2-2/F; IEC 320-C14 |
| Voltage rating - appliance inlet | 250VAC |
| Current rating - appliance inlet | 10A |
| Panel cutout | Rectangular - 106.00mm x 34.40mm |
| Material flammability rating | UL94 V-0 |
| Approval agency | CSA, ENEC, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.039\" ~ 0.118\" (1.00mm ~ 3.00mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder |
| Positions | 3 per connection (2) |
