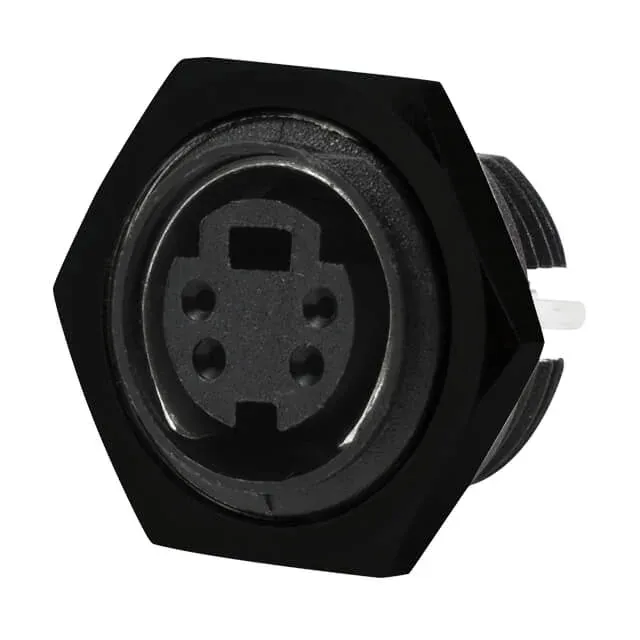

CONN RCPT FMALE MINI DIN 4P SLDR
$3.17Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | MD-CV |
| Mounting type | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 100VAC, 12VDC |
| Current rating | 1A, 2A |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Polybutylene Terephthalate (PBT) |
| Contact material | Phosphor Bronze |
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Ground |
| Orientation | Keyed |
| Termination | Solder |
| Positions | 4 |
| Shell size - insert | Mini DIN |
| Contact finish - mating | Silver |
Sourcing this connector
CUI Devices MD-40CV is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against CUI Devices and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
