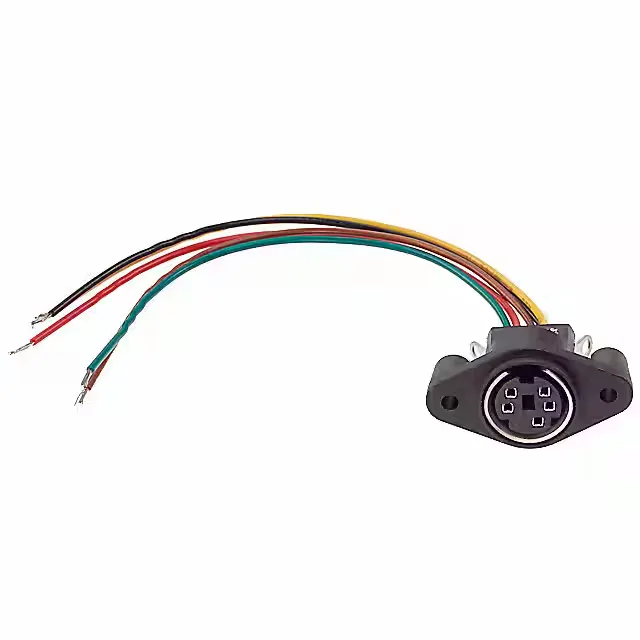

CUI Devices MD-50PL100
MPNMD-50PL100
Active
CONN RCPT FMALE MINI DIN 5P WIRE
$3.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMD-PL100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MD-PL100 |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 100VAC, 12VDC |
| Current rating | 1A, 2A |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Polybutylene Terephthalate (PBT) |
| Contact material | Phosphor Bronze |
| Primary material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bag |
| Features | Ground |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Wire Leads |
| Positions | 5 |
| Shell size - insert | Mini DIN |
| Contact finish - mating | Tin |
