CUI Devices MJ-2508 — Audio Connectors

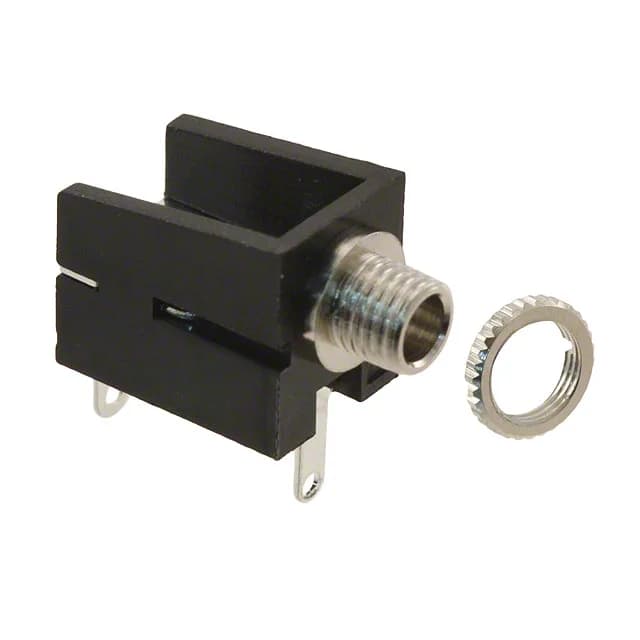

CUI Devices MJ-2508 Phone Jack, 2.5mm, 1A, 12VDC

MPNMJ-2508
Active

CUI Devices phone jack, order code MJ-2508, female, 2 conductors / 3 contacts, 2.50mm industry-recognized mating diameter, 1 A, 12 VDC, unshielded, tin-plated contacts, panel mount through-hole right-angle, solder eyelet termination.

$0.7900Ref. price · indicative, final on quote
CUI Devices MJ-2508 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MJ-2508 key specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typePhone Jack
Voltage - rated12VDC
Current rating1 A
Operating temperature-25°C ~ 85°C
Body colorSilver, Black
Body materialBrass
Contact materialBrass; Copper Alloy
Housing materialPolybutylene Terephthalate (PBT)
Contact material - platingTin
GenderFemale
PackageBag

All specifications

MJ-2508 additional specifications
ParameterValue
FeaturesMounting Hardware, Thread Lock
Includes2 pcs - 1 Connector, 1 Nut
ShieldingUnshielded
TerminationSolder Eyelet(s)
Connector sizeM4
Signal linesMono
Actual diameter0.102\" (2.60mm)
Panel hole size0.217\" (5.51mm)
Internal switchSingle Switch
Number of positions (Contacts)2 Conductors, 3 Contacts
Industry recognized mating diameter2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone

Product details

2.5mm mono phone jack, panel-mount right-angle

The MJ-2508 is a 2.5mm mono phone jack from CUI Devices, a 2-conductor / 3-contact female connector with a single internal switch. Rated 1 A at 12 VDC, the unshielded jack uses tin-plated brass/copper alloy contacts and a PBT housing, terminating via solder eyelets for panel-mount through-hole right-angle installation.

Mating diameter and panel fit

The MJ-2508 accepts a 2.50mm (0.094", 3/32") plug — the sub-miniature headphone standard — and fits a 0.217" (5.51mm) panel hole, secured by an M4 thread lock and included nut. Within the CUI Devices phone jack family, the MJ-2508's 2.5mm mating diameter contrasts with the 3.5mm (1/8") mini-plug of the MJ-3536N and MJ-3502 — the MJ-2508 is the sub-miniature option for compact audio jacks.

Frequently asked questions

What is the MJ-2508's gender and connector type?

The MJ-2508 is a female phone jack, mono, with 2 conductors and 3 contacts.
