CUI Devices MJ-2523-SMT-TR
MPNMJ-2523-SMT-TR
Active
CONN JACK MONO 2.5MM SMD R/A
$1.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~85°C |
| Body color | Black |
| Contact material | Brass; Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Contact material - plating | Silver |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.102\" (2.60mm) |

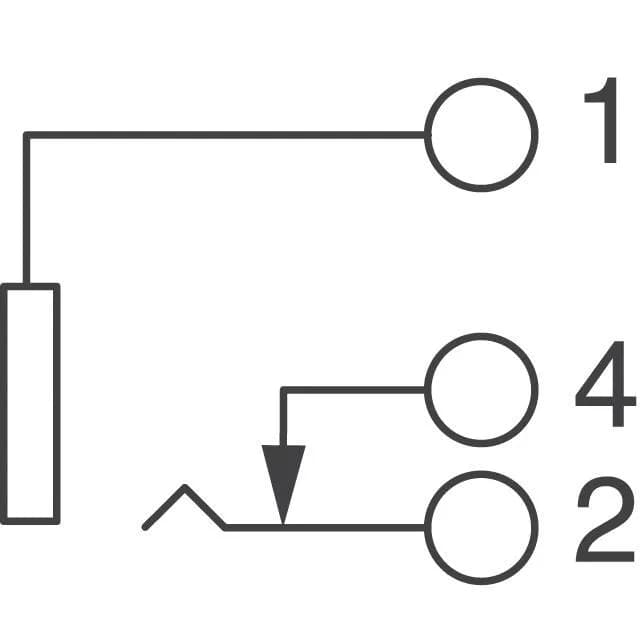

| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
