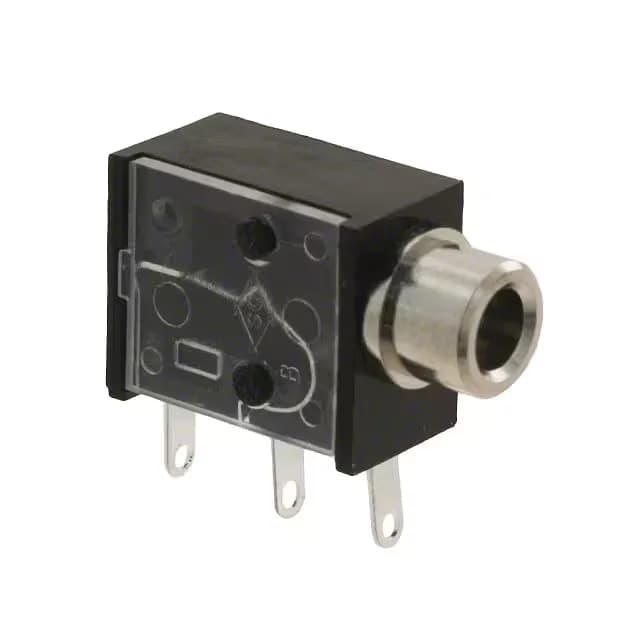

CUI Devices MJ-3502N phone jack, female, 3.50mm industry-recognized mating diameter, mono, 2 conductors/3 contacts, 1 A, 12 VDC, through-hole right-angle, solder eyelet termination.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -20°C~85°C |
| Body color | Black |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polyoxymethylene (POM) |
| Contact material - plating | Silver |
| Gender | Female |
| Package | Bag |
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Mono |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
The MJ-3502N is CUI Devices' 3.50 mm mono phone jack in a right-angle through-hole package, accepting the industry-standard 3.50 mm (1/8") mini plug. Rated 1 A at 12 VDC with silver-plated brass and phosphor bronze contacts, the single-switch internal circuit handles mono signal lines.
The MJ-3502N is ROHS3 compliant.
