CUI Devices phone jack, order code MJ-3536NG, female, 3.50mm industry-recognized mating diameter, mono signal lines, 2 conductors/3 contacts, 1 A, 12 VDC, through-hole right-angle, solder eyelet termination, tin-plated contacts.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Body color | Black |
| Body material | Brass |
| Contact material | Brass; Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Contact material - plating | Tin |
| Gender | Female |
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Mono |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |

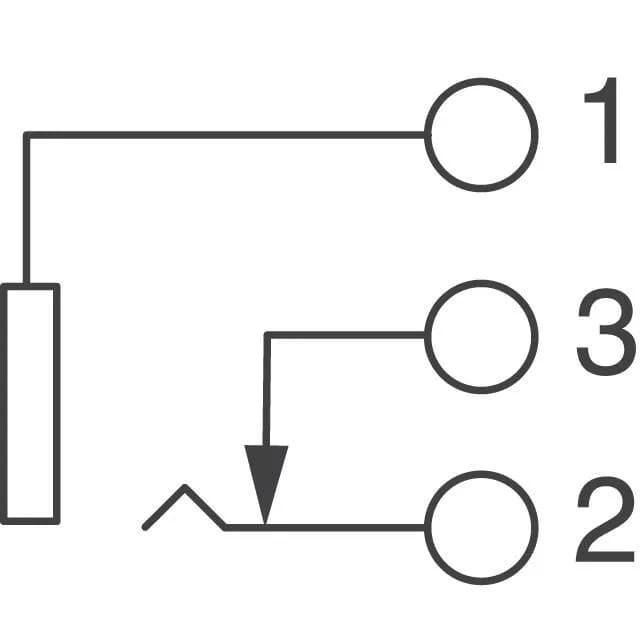

The MJ-3536NG is a female phone jack accepting a 3.50mm (1/8", mini plug) mating diameter, with mono signal lines and an internal single switch. Termination is via solder eyelets — the through-hole right-angle mounting orients the jack parallel to the PCB edge for panel- or bracket-mount applications.
The industry-recognized mating diameter is 3.50mm (0.141", 1/8", mini plug). It carries mono signal lines with 2 conductors and 3 contacts, plus a single internal switch.
MJ-3536NG is RoHS3 compliant. No UL or IEC documentation is listed in the available records.
