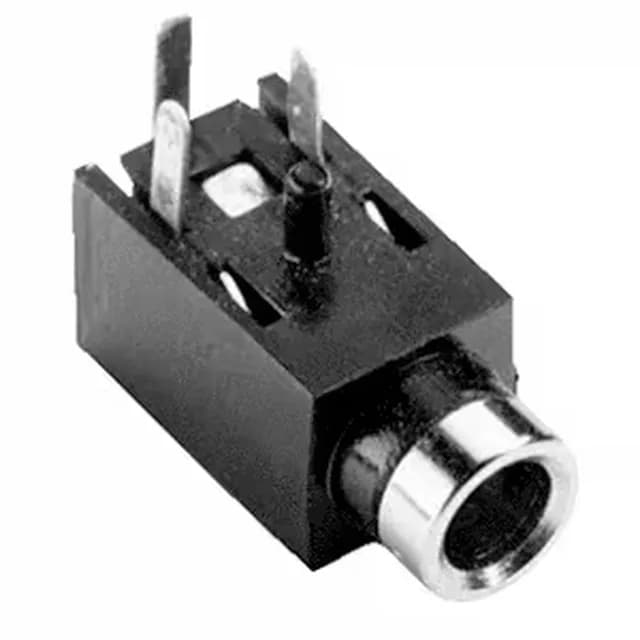

CUI Devices MJ1-2503A
MPNMJ1-2503A
Active
CONN JACK MONO 2.5MM R/A
$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~85°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass; Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Contact material - plating | Tin |
| Gender | Female |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.102\" (2.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
