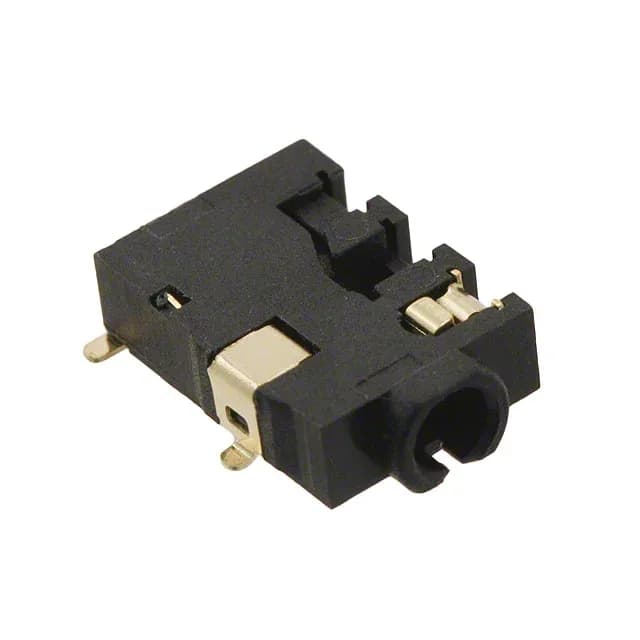

CUI Devices phone jack, order code MJ1-2533-SMT-TR, female, 2.50mm industry recognized mating diameter, 2 conductors/3 contacts, mono, single switch, gold-plated contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~85°C |
| Body color | Black |
| Contact material | Brass; Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Contact material - plating | Gold |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.102\" (2.60mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone |
The MJ1-2533-SMT-TR is the 2.50mm mono phone jack from CUI Devices, carrying 2 conductors and 3 contacts with a single internal switch. Gold-plated brass and copper alloy contacts are rated 1 A at 12 VDC; the housing is polyamide 6T with a board guide for pick-and-place alignment.
