CUI Devices MP-2511 — Audio Connectors

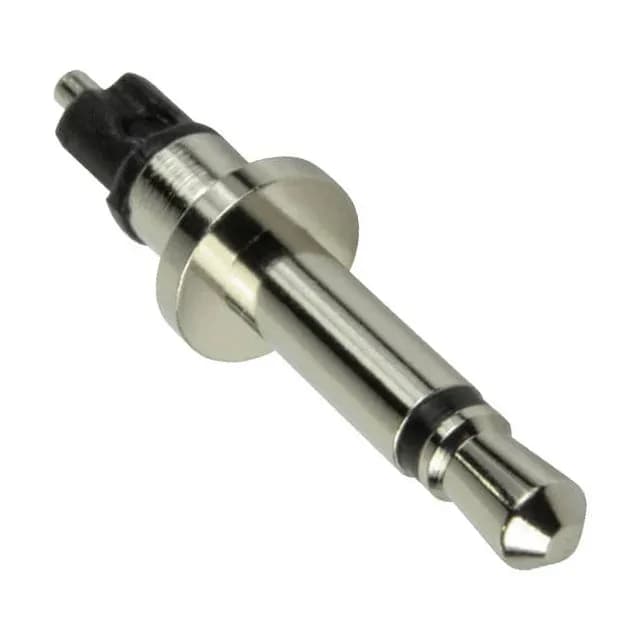

CUI Devices MP-2511 Phone Plug, 2.5mm, 2 Conductor, Male

MPNMP-2511
Active

CUI Devices phone plug, order code MP-2511, male, 2 conductors, 2.50 mm industry-recognized mating diameter, 1 A, 12 VDC, nickel-plated brass contacts, free hanging, solder termination, unshielded.

$0.4200Ref. price · indicative, final on quote
CUI Devices MP-2511 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MP-2511 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePhone Plug
Voltage - rated12VDC
Current rating1 A
Operating temperature-25°C~70°C
Body colorSilver
Body materialBrass
Contact materialBrass
Insulation colorBlack
Mating length (Depth)0.433\" (11.00mm)
Contact material - platingNickel
GenderMale

All specifications

MP-2511 additional specifications
ParameterValue
PackageBag
ShieldingUnshielded
TerminationSolder
Signal linesMono
Actual diameter0.091\" (2.30mm)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone

Product details

2.50 mm straight plug, 2-conductor mono

The MP-2511 is a 2-conductor mono phone plug from CUI Devices, accepting a 2.50 mm industry-recognized mating diameter (0.094", 3/32", sub-miniature). Rated 1 A at 12 VDC with nickel-plated brass contacts and solder termination, the plug is unshielded and mounts free-hanging in-line.

2.50 mm vs 3.50 mm — MP-2511 and MP-3521

The MP-2511 uses the 2.50 mm sub-miniature diameter, while the MP-3521 uses the 3.50 mm mini-plug diameter — the two do not share a common jack and are not cross-compatible without changing the mating receptacle.

Frequently asked questions

What compliance documentation does CUI Devices provide for MP-2511?

The MP-2511 is ROHS3 Compliant per the manufacturer listing.
