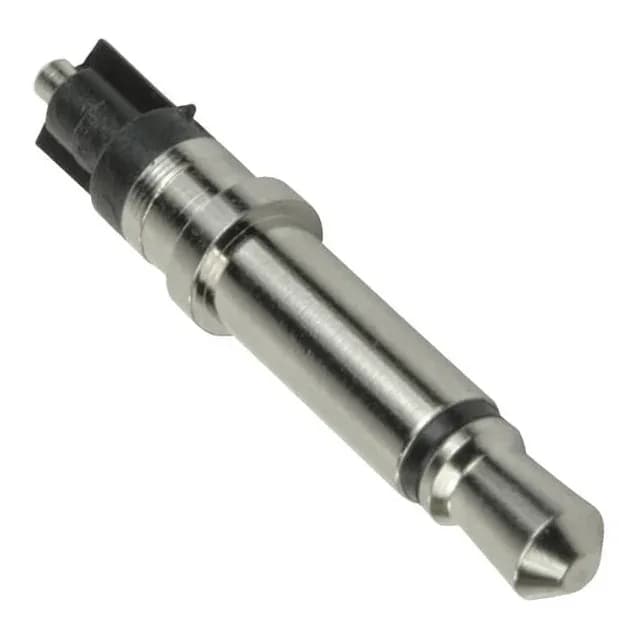

CUI Devices phone plug, order code MP-3521, 2-conductor mono, 3.50 mm (1/8") industry-recognized mating diameter, 1 A, 12 VDC, nickel-plated brass contacts, free-hanging in-line, solder termination.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Operating temperature | -25°C~70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Insulation color | Black |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Nickel |
| Gender | Male |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.126\" (3.20mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
The MP-3521 is a 2-conductor mono phone plug from CUI Devices, accepting the industry-standard 3.50 mm (1/8") mini plug jack. Rated 1 A at 12 VDC, the plug uses nickel-plated brass contacts and a brass body with solder termination for free-hanging in-line mounting. The operating temperature range is -25°C to 70°C.
The MP-3521 is a male phone plug.
