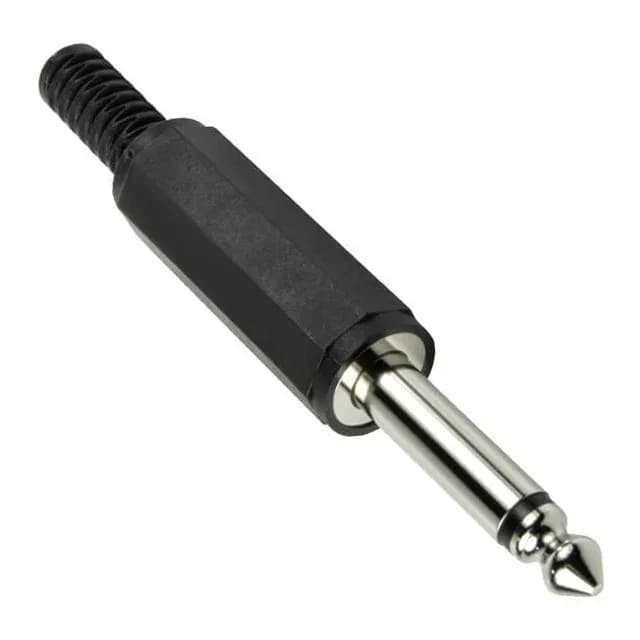

CUI Devices MP-6320 phone plug, male, 6.35 mm (0.250") industry recognized diameter, 2 conductors, 2 contacts, 1 A, 12 VDC, nickel-plated brass contacts, solder eyelet termination, free hanging, unshielded.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Cable opening | 0.236\" (6.00mm) |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polyethylene (PE) |
| Insulation color | Black |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Parameter | Value |
|---|---|
| Contact material - plating | Nickel |
| Gender | Male |
| Package | Bag |
| Features | Cover, Strain Relief |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Mono |
| Actual diameter | 0.250\" (6.35mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
The MP-6320 is a 6.35 mm (0.250") straight phone plug from CUI Devices, configured as a 2-conductor mono plug with nickel-plated brass contacts. Rated 1 A at 12 VDC, it terminates via solder eyelets and includes a strain-relief cover for the cable entry at 0.236" (6.00 mm) cable opening.
