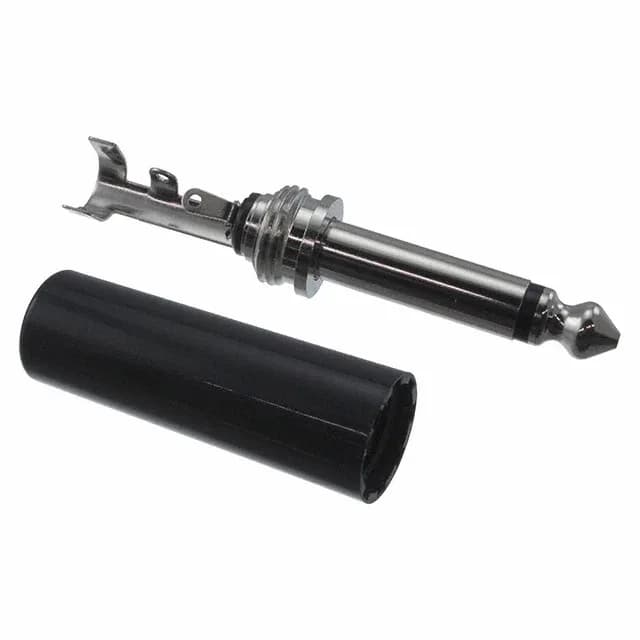

CUI Devices MP-6320A phone plug, male, 6.35 mm (0.250") diameter, 2 conductors, 1 A, 12 VDC, nickel-plated brass contacts, free hanging, solder eyelet termination, unshielded, includes cover.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Phone Plug |
| Voltage - rated | 12VDC |
| Current rating | 1 A |
| Cable opening | 0.272\" (6.91mm) |
| Operating temperature | -25°C~70°C |
| Body color | Silver, Black |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation color | Black |
| Mating length (Depth) | 1.220\" (31.00mm) |
| Parameter | Value |
|---|---|
| Contact material - plating | Nickel |
| Gender | Male |
| Package | Bag |
| Features | Cover |
| Includes | 2 pcs - 1 Connector, 1 Cover |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Signal lines | Mono |
| Actual diameter | 0.250\" (6.35mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 6.35mm (0.250\", 1/4\") - Headphone |
The MP-6320A is a straight male phone plug in the 6.35 mm (0.250") industry-recognized diameter, carrying 2 conductors for mono signal applications. Rated 1 A at 12 VDC with nickel-plated brass contacts and brass body, solder eyelet termination, and a free-hanging (in-line) mount.
CUI Devices supplies the MP-6320A. Volume pricing is quoted per RFQ against the BOM quantity; no stock-holding claim is made here.
The MP-6320A is ROHS3 Compliant.
