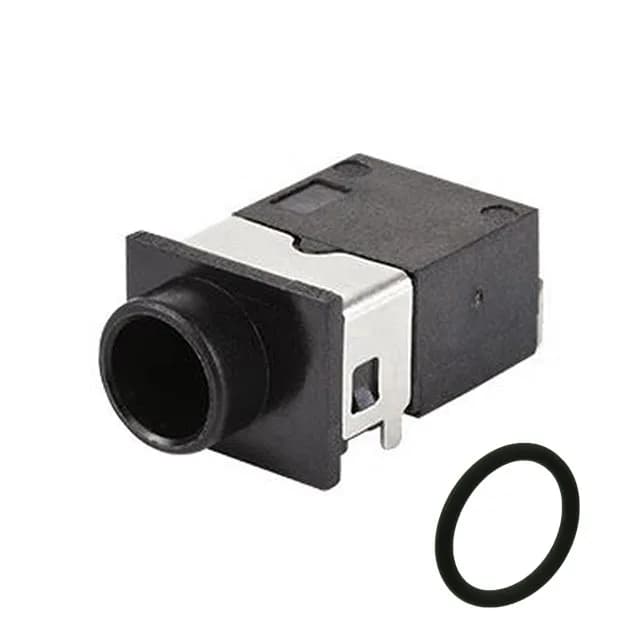

CUI Devices PJ-001DH-67
MPNPJ-001DH-67
Active
POWER JACK, IP67, 1.3 X 3.8 , 3.
$3.7500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 3.5 A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.335\" (8.50mm) |
| Contact material - plating | Gold |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Actual diameter | 0.051\" (1.30mm ID), 0.150\" (3.80mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 1.30mm ID (0.051\"), 3.50mm OD (0.138\") |
