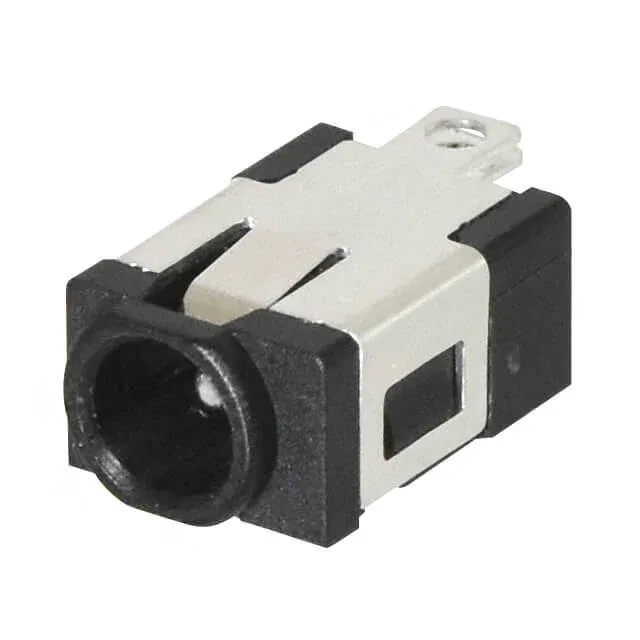

CUI Devices PJ-004CH
MPNPJ-004CH
Active
PWR JACK 1X3.1MM VERTICAL THROUG
$1.39Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 3.5 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Silver, Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.238\" (6.05mm) |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder Eyelet(s) |
| Actual diameter | 0.039\" (1.00mm ID), 0.122\" (3.10mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 3 Conductors, 3 Contacts |
| Industry recognized mating diameter | 1.10mm ID (0.043\"), 3.00mm OD (0.118\") |
