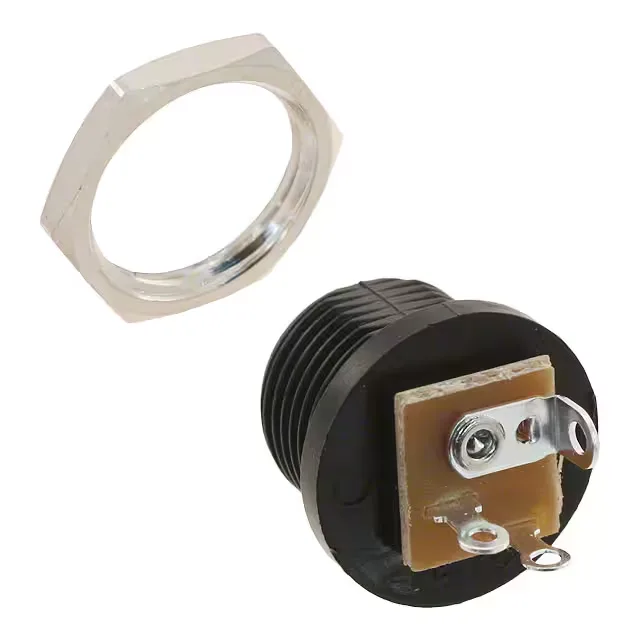

CUI Devices PJ-011A
MPNPJ-011A
Active
CONN PWR JACK 2X5.5MM SOLDER
$2.03Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 5 A |
| Mounting feature | Bulkhead - Front Side Nut |
| Body color | Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyoxymethylene (POM) |
| Contact material - plating | Nickel |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Hardware, Thread Lock |
| Includes | 2 pcs - 1 Connector, 1 Nut |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Actual diameter | 0.079\" (2.00mm ID), 0.236\" (6.00mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.10mm ID (0.083\"), 5.50mm OD (0.217\") |
