CUI Devices PJ-037B — Wire-to-Board Connectors

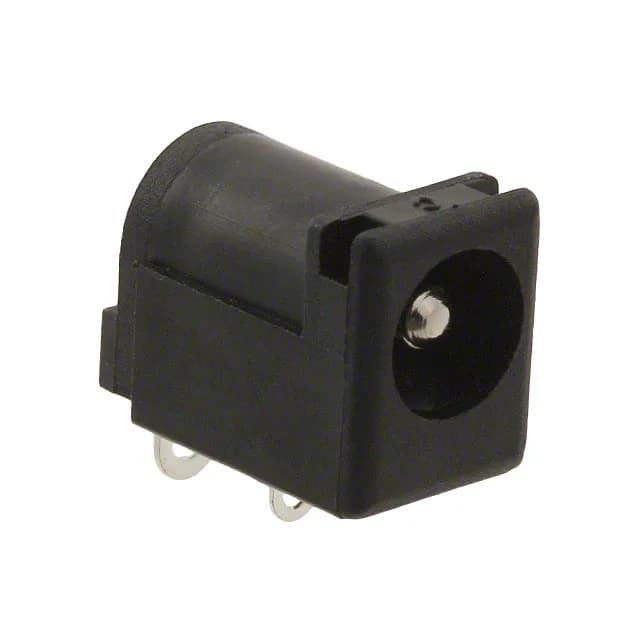

CUI Devices PJ-037B

MPNPJ-037B
Active

CONN PWR JACK 2.5X5.5MM SOLDER

$0.5900Ref. price · indicative, final on quote
CUI Devices PJ-037B datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PJ-037B key specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeJack
Voltage - rated24VDC
Current rating2.5 A
Operating temperature-25°C ~ 85°C
Body colorBlack
Contact materialBrass, Copper Alloy
Housing materialPolybutylene Terephthalate (PBT)
Mating length (Depth)0.386\" (9.80mm)
Contact material - platingTin
Material flammability ratingUL94 V-0
GenderMale

All specifications

PJ-037B additional specifications
ParameterValue
PackageBag
ShieldingUnshielded
TerminationSolder Eyelet(s)
Actual diameter0.098\" (2.50mm ID), 0.256\" (6.50mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)2 Conductors, 2 Contacts
Industry recognized mating diameter2.50mm ID (0.098\"), 5.50mm OD (0.217\")
