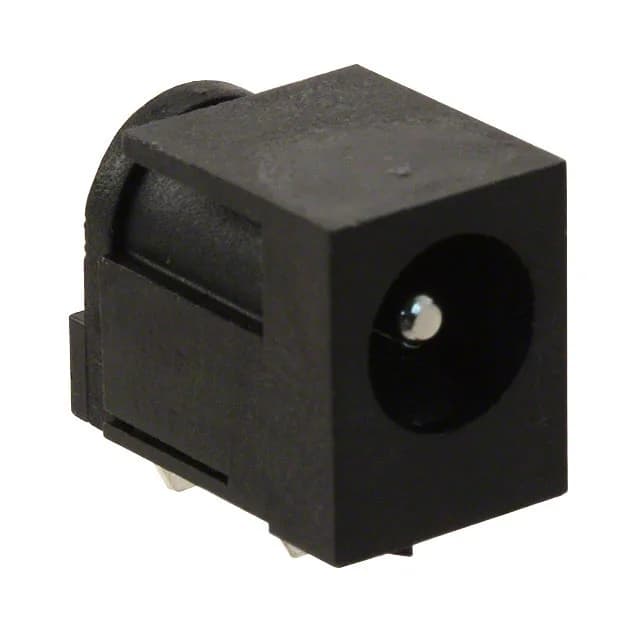

CUI Devices PJ-057A
MPNPJ-057A
Active
CONN PWR JACK 2X5.5MM SOLDER
$0.8300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 2.5 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, Bronze |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.372\" (9.45mm) |
| Contact material - plating | Tin |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.079\" (2.00mm ID), 0.248\" (6.30mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.10mm ID (0.083\"), 5.50mm OD (0.217\") |
