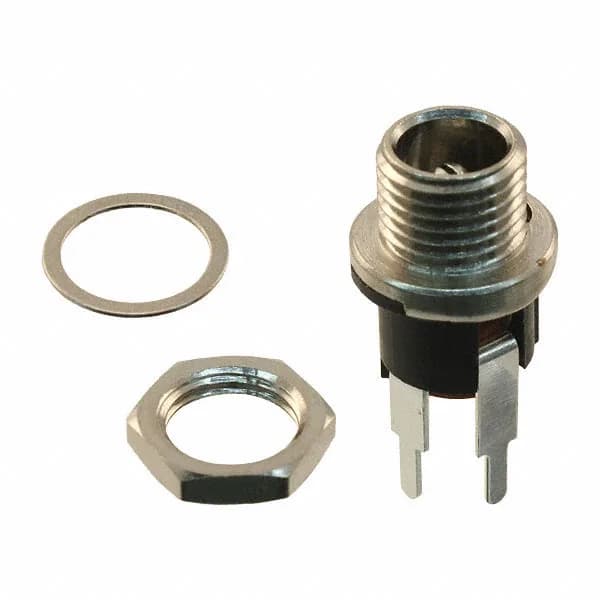

CUI Devices PJ-064B
MPNPJ-064B
Active
CONN PWR JACK 2.5X5.5MM SOLDER
$2.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 5 A |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -25°C ~ 70°C |
| Body color | Black |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 0.348\" (8.85mm) |
| Contact material - plating | Silver |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Gender | Male |
| Package | Bag |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | 5/16\"-32 |
| Actual diameter | 0.098\" (2.50mm ID), 0.224\" (5.70mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
