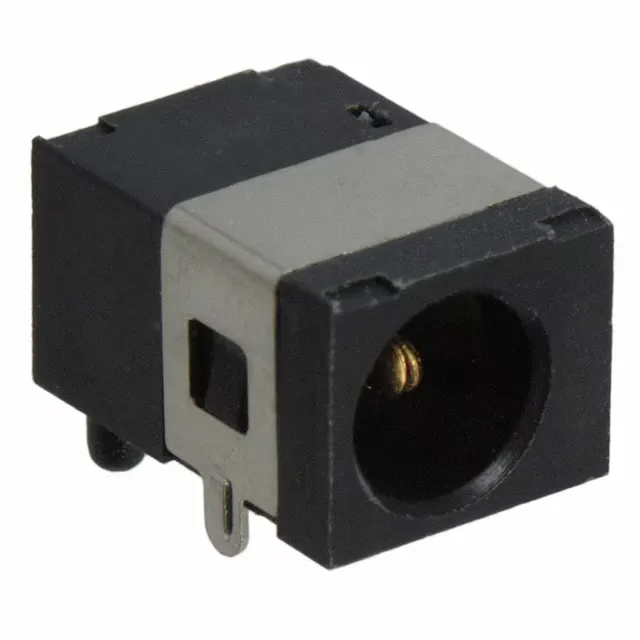

CUI Devices PJ-072C-SMT-TR
MPNPJ-072C-SMT-TR
Active
CONN PWR JACK 1X3.4MM SOLDER
$1.1Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 2 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Mating length (Depth) | 0.236\" (6.00mm) |
| Contact material - plating | Gold |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Actual diameter | 0.039\" (1.00mm ID), 0.142\" (3.60mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 1.00mm ID (0.039\"), 3.40mm OD (0.134\") |
