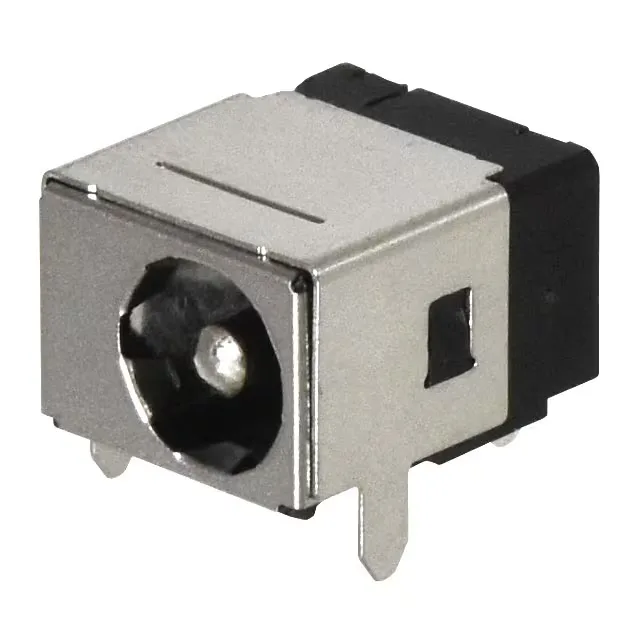

CUI Devices PJ-083AH
MPNPJ-083AH
Active
PWR JACK 2.0X5.9MM RT THROUGH HO
$1.53Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 5 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Silver, Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.323\" (8.20mm) |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Actual diameter | 0.079\" (2.00mm ID), 0.232\" (5.90mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.00mm ID (0.079\"), 5.50mm OD (0.217\") |
