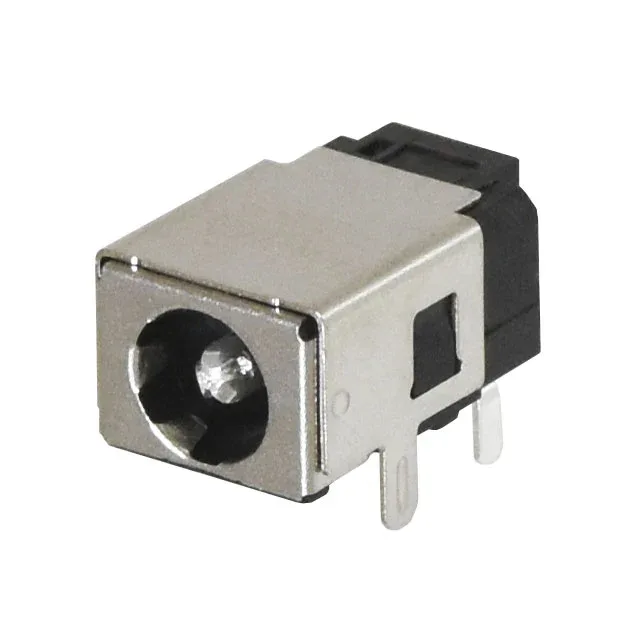

PWR JACK 1.65X4.4MM RT THROUGH H
$1.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 5 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Silver, Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyamide (PA10T), Nylon 10T |
| Mating length (Depth) | 0.323\" (8.20mm) |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Actual diameter | 0.065\" (1.65mm ID), 0.173\" (4.40mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 3 Conductors, 4 Contacts |
| Industry recognized mating diameter | 1.70mm ID (0.067\"), 4.00mm OD (0.157\") |
Sourcing this connector
CUI Devices PJ-086H is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against CUI Devices and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
