CUI Devices PJ-097H — Wire-to-Board Connectors

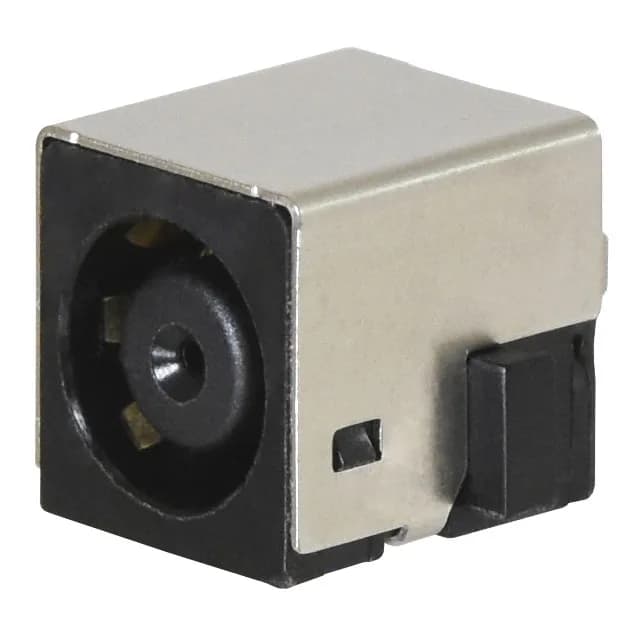

CUI Devices PJ-097H

MPNPJ-097H
Obsolete
$1.9700Ref. price · indicative, final on quote
CUI Devices PJ-097H datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PJ-097H key specifications
ParameterValue
MountingPanel Mount
Connector typeJack
Voltage - rated24VDC
Current rating8 A
Operating temperature-25°C ~ 85°C
Body colorSilver, Black
Contact materialBrass, Copper Alloy
Housing materialPolyamide (PA10T), Nylon 10T
Mating length (Depth)0.362\" (9.20mm)
Contact material - platingGold
Material flammability ratingUL94 V-0
GenderFemale

All specifications

PJ-097H additional specifications
ParameterValue
PackageBag
ShieldingShielded
TerminationSolder Eyelet(s)
Actual diameter0.031\" (0.80mm ID), 0.197\" (5.00mm OD)
Internal switchDoes Not Contain Switch
Number of positions (Contacts)3 Conductors, 3 Contacts
Industry recognized mating diameter0.80mm ID (0.031\"), 5.00mm OD (0.197\")
